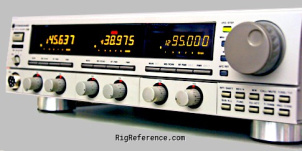

This transceiver looks more like a 1980s hi-fi tuner than an amateur rdaio rig. Still, it features 2 m / 70 cm in its unusual package and could be fitted with either the CRF-081 or CRF-301 for additional 10 m or 23 cm coverage, both giving 10 W output.
The C-55 is largely the same as its predecessors, the Standard C-50 and Standard C-50D. Added features are an optional voice recorder and DTMF / CTCSS installed as standard.
Extensive scan and comfort features make the STANDARD C-55 complete.
General characteristics
- HAM bands
- 2m 70cm 23cm 10m
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 20 / 25 / 50 / 100 / 1000 kHz
- Memories
- 33 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz
10 m / 23 cm optional - Modulations
- FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 24 kHz (-60 dB)
- Filters
- ?
- Receiver system
- 2 m/70 cm: Double-conversion superheterodyne
- IF-frequencies
- 1st: 21.8 MHz (2 m), 47.05 MHz (70 cm)
2nd: 455 KHz (2 m/70 cm) - Image rejection
- 2 m: 65 dB, 70 cm: 60 dB
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 / 430-440 MHz
10 m / 23 cm optional - Modulations
- FM
- RF-output
- 1 / 5 / 10 W
Connections
- Antenna
- N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or mains
- Current drain RX
- 1.3 A
- TX
- 4.5 A max
Physical
- Dimensions (w×h×d)
- 362 × 109 × 330 mm (14.25 × 4.29 × 12.99 in)
- Weight
- 11.00 kg (24.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1991 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Remote control
CTCSS / DTMF options - Accessories
- CMP-838 G Microfone
CTN-50 CTCSS-unit
CTD-50 DTMF-unit
CRC-50 radio remote controll 80MHz
CRF-081 10m option, 28 - 29,7MHz, 4,5A, 10W rf-power
CRF-081-D 10m Option, 28 - 29,7MHz, 12A, 50W rf-power
CRF-301 23cm Option, 1260 - 1300MHz, 6,5A, 10W HF
CVM-50 digital voice recorder
CAW05 power cord - RigReference ID
- 6516
- MPN
- STANDARD-C-000050
Manuals, diagrams and brochures
- Standard C-55D Operation Manual (German) PDF - 5.84 MB, submitted by Pancho Cheja
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard Horizon C-55. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Standard Horizon C-55 is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
