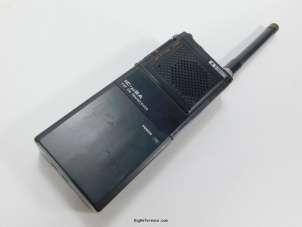

The ICOM IC-µ2A/AT/E is a handheld VHF transceiver. Frequency range for transmit and receive is 144-146 MHz (Europe), 144-148 MHz (Australia), or 140-150 MHz (USA / Asia). Frequency stability is ± 15 p.p.m. at o °C~60 °C with tuning steps of 5 / 12.5 kHz. Receiver system is double conversion superheterodyne with IF frequencies of 1st: 16.9 MHz and 2nd: 455 kHz. RF output is selectable between 0.1 / 1 W. Audio output is 250 mW into 8 Ohms. Current drain in receive mode is 6-170 mA, and 300-600 mA in transmit mode. Dimensions are 148 × 61 × 33 mm with BP-22. Weight is 340 gr with BP-22.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 15 p.p.m. at o °C~60 °C
- Tuning steps
- 5 / 12.5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz (Europe)
144-148 MHz (Australia)
140-150 MHz (USA / Asia) - Modulations
- FM
- Sensitivity
- ≤ 0.25 µV for 12 dB SINAD
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 16.9 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 250 mW into 8 Ohms
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (Australia)
140-150 MHz (USA / Asia) - Modulations
- FM
- RF-output
- 0.1 / 1 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- 6-170 mA
- TX
- 300-600 mA
Physical
- Dimensions (w×h×d)
- 61 × 148 × 33 mm (2.40 × 5.83 × 1.30 in) with BP-22
- Weight
- 340 gr (12.0 oz) with BP-22
- Form factor
- Handheld
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6531
- MPN
- ICOM-IC-000002A
Manuals, diagrams and brochures
- Icom IC Micro-2A/AT/E Service Manual PDF - 2.99 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-µ2A/AT/E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-µ2A/AT/E is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
