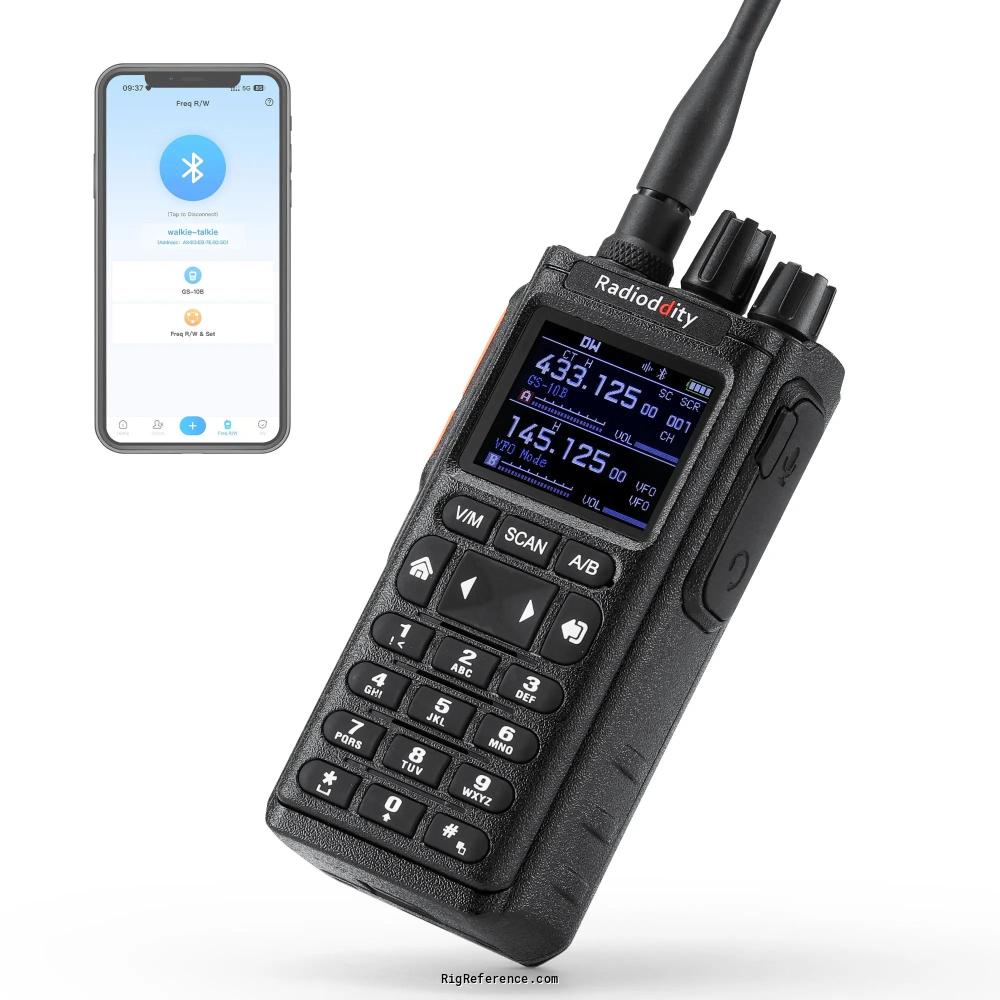

Radioddity GS-10B

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

256 channels in bank(s)

Receiver

RX-range

FM broadcast 76-108 MHz, airband 108-136 MHz
136-174 / 220-260 / 350-390 / 400-520 MHz
NOAA weather

Modulations

AM   FM   N-FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-180 / 220-260 / 330-520 MHz

Modulations

FM   N-FM

RF-output

8 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

Li-ion 18650 cell, 2500 mAh USB-C charging (2 A)

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

55 × 115 × 43 mm (2.17 × 4.53 × 1.69 in)

Weight

280 gr (9.9 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

Multi-band transmit incl. VHF, UHF, 1.25 m and 1 m, up to 8 W
Bluetooth app programming (Walkie-talkie Tool, iOS & Android), CHIRP supported
One-key frequency copy
Dual PTT, dual knobs
1.77" colour display
Programmable PF2/PF3 keys
TX noise reduction
Airband and NOAA weather receive
Standard 2-pin Kenwood jack
USB-C fast charging

Accessories

-

RigReference ID

6841

MPN

RADIODDITY-GS-000010B

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radioddity GS-10B. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GS-10B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radioddity GS-10B in Good condition is around:

• USD 39

Price History Chart

These estimates are based on the following prices:
