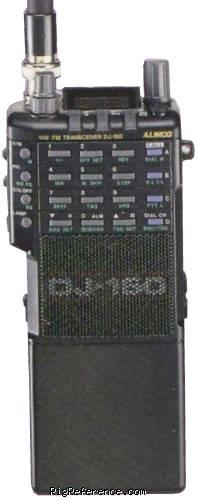

The Alinco DJ-160E is a handheld VHF transceiver. It covers 144-146 MHz for both receive and transmit. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 55.05 MHz and 2nd: 455 kHz. RF output is 0.2/2 W with EBP-10N battery or 0.5/5 W with EBP12N battery. Audio output is 250 mW, 8 ohms, 10% THD. It features 1 memory bank with 20 channels. Power requirements are 7.2 V DC. Dimensions are 142 × 57 × 32 mm and it weighs 350 gr. Current drain during transmit is 0.5-1 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- 12 dB SINAD ≤ -15 dBµ
- Selectivity
- 7.5 kHz @ -6 dB / 15 kHz @ -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 55.05 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 250 mW, 8 ohms, 10% THD
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- 0.2 / 2 W with EBP-10N battery
0.5 / 5 W with EBP12N battery
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2 V DC
- Current drain RX
- ?
- TX
- 0.5-1 A
Physical
- Dimensions (w×h×d)
- 57 × 142 × 32 mm (2.24 × 5.59 × 1.26 in)
- Weight
- 350 gr (12.4 oz)
- Form factor
- Handheld
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2236
- MPN
- ALINCO-DJ-000160E
Manuals, diagrams and brochures
- Alinco DJ-160/460 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-160T/E / DJ-460T/E Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-160E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Alinco DJ-160E is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
