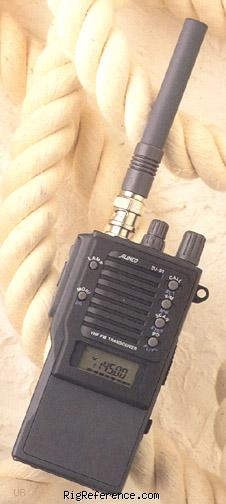

Alinco DJ-S1T

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Alinco DJ-S1T is a handheld VHF transceiver. It covers 144-148 MHz for transmit and 118-136 / 140-170 MHz for receive with AM/FM modulation. RF output power is selectable: High (2-5W depending on voltage), Medium (1W) and Low (100mW). It weighs 368.55 gr with dry battery case. Dimensions are 109.22 × 53.34 × 38.1 mm. Features include a DTMF option.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 118-136 / 140-170 MHz AM/FM
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM
RF-output: High: 2-5 W (depending on voltage), Medium: 1 W, Low: 100 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: ?V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 53.34 × 109.22 × 38.1 mm (2.10 × 4.30 × 1.50 in)
Weight: 369 gr (13.0 oz) with dry battery case
Form factor: Handheld
Manufactured: Between 199x and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF option
Accessories: -
RigReference ID: 2279
MPN: ALINCO-DJ-S000001T
