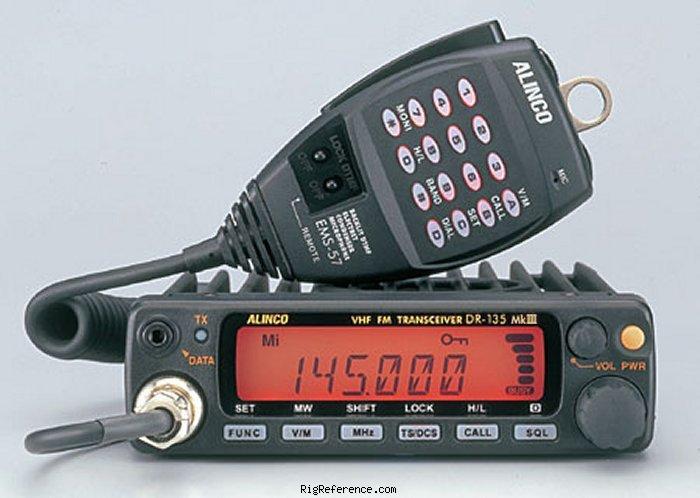

Alinco DR-135E MKIII

Mobile VHF Transceiver

Specs Manuals (2) Reviews (1) Prices (2) Compare

The Alinco DR-135E MKIII is a Mobile VHF Transceiver. It covers 118-174 MHz (after modification) for reception and 144-146 MHz for transmission. The transceiver features a double-conversion superheterodyne receiver system with IF frequencies of 1st: 21.7 MHz and 2nd: 450 KHz. It has selectable tuning steps of 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz. The DR-135E MKIII offers a maximum RF output of 50W, 20W, or 5W and features CTCSS, DCS, GPS input for APRS, and 1200/9600 bd packet (EJ-41U) option. It has 1 memory bank with 100 channels. Dimensions are 40 × 142 × 174 mm. The transceiver weighs 1 kg and requires 13.8V DC +/- 15%. Current drain is 400 mA (squelched) in receive mode and a maximum of 11 A in transmit mode.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 118-174 MHz (after modification)
Modulations: AM FM N-FM DV
Sensitivity: < -16.0 dBu (12 dB SINAD)
Selectivity: FM: 12 kHz or more (-6 dB), 28 kHz or less (-60 dB)
N-FM: 6 kHz or more (-6 dB), 16 kHz or less (-60 dB)
Filters: ?
Receiver system: Double-conversion superheterodyne
IF-frequencies: 1st: 21.7 MHz
2nd: 450 KHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM N-FM DV
RF-output: High: 50 W, Medium: 20 W, Low: 5 W

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: 400 mA (squelched)
TX: Max 11 A

Physical

Dimensions (w×h×d): 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 200x and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS, DCS. GPS input for APRS. 1200/9600 bd packet (EJ-41U) option. RoHS compliant
Accessories: -
RigReference ID: 2314
MPN: ALINCO-DR-000135E-MKIII

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Alinco DR-135/435MK3 FXE Instruction manual PDF - Unknown size, submitted by RigReference
: Alinco DR-135/435MK3 Service manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Rating	Title	Submitted
	Good rig at a good price.	9 years ago by yn1bb

View all Alinco DR-135E MKIII reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-135E MKIII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Alinco DR-135E MKIII in Good condition is around:

EUR 169 ~ EUR 189

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	EUR 189.00	Used / Good	thiecom.de
2010	EUR 169.00	New / Good	thiecom.de
