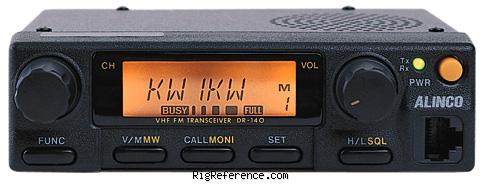

The Alinco DR-140 is a Mobile VHF Transceiver. It covers 118-173 MHz for receive and 144-146 MHz for transmit. The RF output power is selectable between High: 50 W and Low: 5 W. It features 1 memory bank with 50 channels. Power requirements are 13.8V DC. Dimensions are 41 × 141 × 154 mm. The current drain in receive mode is Max 800 mA, and in transmit mode it's Max 10.5 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 50 channels in 1 bank(s)
Receiver
- RX-range
- 118-173 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 800 mA
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- 141 × 41 × 154 mm (5.55 × 1.61 × 6.06 in)
- Weight
- 860 gr (1.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2317
- MPN
- ALINCO-DR-000140
Manuals, diagrams and brochures
- Alinco DR-140T/E/TE1/TE2 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-140. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DR-140 in Good condition is around:
- USD 50 ~ USD 110
These estimates are based on the following prices:
