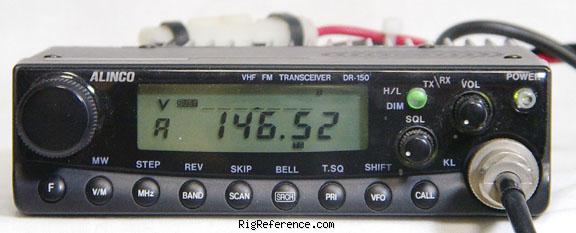

The Alinco DR-150 is a mobile VHF transceiver. Frequency range for RX is 118-173 MHz and TX is 144-146 MHz (Europe) or 144-148 MHz (USA). RF output power is selectable as High: 50 W, Medium: 25 W, Low: 10 W. It features 1 memory bank with 100 channels and requires 13.8V DC power. Current drain is Max 600 mA in RX and Max 10 A in TX. Dimensions are 40 × 140 × 129 mm. The DR-150 is 9K6 packet ready.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 118-173 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 50 W, Medium: 25 W, Low: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 129 mm (5.51 × 1.57 × 5.08 in)
- Weight
- 800 gr (1.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready
- Accessories
- -
- RigReference ID
- 2318
- MPN
- ALINCO-DR-000150
Manuals, diagrams and brochures
- Alinco DR-150 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-150 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-150. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DR-150 in Good condition is around:
- USD 50
These estimates are based on the following prices:
