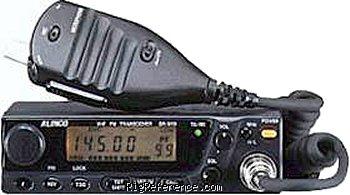

Alinco DR-M10H

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Alinco DR-M10H is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output is selectable between High: 50 W and Low: 5 W. Image rejection is 60 dB. It features 1 memory bank with 100 channels. Power requirements are 13.8V DC. Current drain is 0.8 A in receive mode and Max 10 A in transmit mode. Dimensions are 40 × 140 × 154 mm. It weighs 860 gr.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: 6 kHz (-6 dB), 15 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 50 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.8 A
TX: Max 10 A

Physical

Dimensions (w×h×d): 140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)
Weight: 860 gr (1.9 lbs)
Form factor: Mobile
Manufactured: Between 199x and 199x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2341
MPN: ALINCO-DR-M000010H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-M10H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Alinco DR-M10H is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
