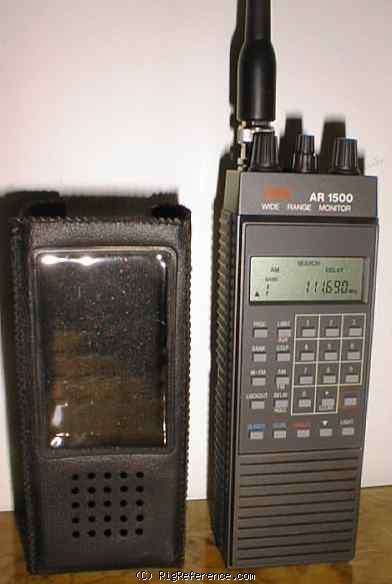

The AOR AR-1500 receiver continuously covers 500 kHz to 1300 MHz. Modes include: NFM, WFM, AM and SSB. The AR-1500 is the world's first true hand-held wide range receiver offering SSB as standard feature. Coverage is from 500 kHz all the way to 1300 MHz without any gaps. Channel steps are programmable in multiples of 5 kHz and 12.5 kHz up to 995 kHz, the BFO will allow tuning between these steps for SSB operation. All popular modes are provided NFM, WFM, AM and SSB (USB, LSB & CW) with the BFO switched on. A rotary tuning control is fitted to the top panel to further increase operating pleasure, convenience and versatility.

There are 1000 memories arranged in ten banks of 100 channels. 100 of these memories are reserved for 'auto memory' in bank 9. The scan rate is 20 channels per second.

There are three versions of the AR-1500 known at this time. The original AR-1500 was released and available in Japan, the UK, and Europe in mid 1992 and was known simply as the AR-1500. A later revision to this scanner appeared in late 1992, called the AR-1500E. This model differs from the earlier model by including a cascade filter at 58.075 MHz IF to improve selectivity, a DC input protection diode to guard against reverse polarity connection, additional buffering in the microprocessor to protect against software crashes when scanning an empty bank, and a reset switch in the battery compartment.
A new revision, called the AR-1500EX, will be available on Feb. 9, 1993 only in the UK. It contains a substantial redesign of the PC boards and logic circuits. The RF board has been completely redone. In addition, the BNC connector has been reinforced. The unit is supposed to have better selectivity and better handling of strong signals.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m
Frequency stability
?
Tuning steps
user-selectable in any steps of 5 kHz and 12.5 kHz up to 995 kHz
Memories
1000 channels in 10 bank(s) @ 20 channels/second

Receiver

RX-range
0.5-1300 MHz
Modulations
AM   FM   N-FM   W-FM   CW   USB   LSB
Sensitivity
N-FM: 0.5 µV or better for 12dB across most of the range.
AM: 3.0 µV or better for 10dB S/N across most of the range.
SSB: 1.5 µV or better across most of the range
Reduced sensitivity below approx. 2 MHz all modes
Selectivity
?
Filters
?
Receiver system
Superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
> 100 mW @ 10% distortion

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
4.8-6 V DC internal or 11-18 V DC external
Current drain RX
100 mA max
TX
-

Physical

Dimensions (w×h×d)
55 × 152 × 40 mm (2.17 × 5.98 × 1.57 in)
Weight
360 gr (12.7 oz) including battery pack
Form factor
Handheld
Manufactured
Between 1992 and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2347
MPN
AOR-AR-001500
