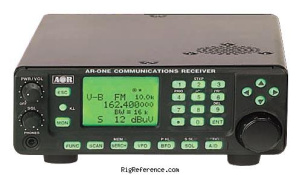

The AOR AR-ONE is a professional wideband communications receiver covering 10 kHz to 3.3 GHz in AM, FM, NFM, WFM, LSB, USB, CW and DATA modes. It provides laboratory grade stability of 0.1 p.p.m. 14° ~ 122°F (-10° ~ 50°C) and 1 Hz frequency display. It is optimized for surveillance and monitoring applications. The AR-ONE is designed for computer controlled operation and up to 99 receivers can be controlled by a single PC. (Software not supplied). Other advance features include: ten VFOs and 1000 memories (10x100), attenuator and preamp. Scan and search with pass and delay are fully supported. Many parameters are settable via the configuration menu and using the arrow keys. The rear panel features two RS232 ports, multi-IF outputs (455 kHz and 10.7 MHz) and N type antenna input jack. The compact size of this radio is conducive to mobile or fixed applications. In the US this model can be purchased for government or for export only.

New price 2002 in the US: $3995.00

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m  2000m  13cm
Frequency stability
±0.1 p.p.m. 14 ~ 122 °F (-10 ~ 50 °C)
Tuning steps
1, 10, 50, 100, 500 Hz, 1, 5, 6.25, 9, 10, 12.5, 20, 25, 30, 50, 100, 500 kHz
Memories
1000 channels in 10 bank(s)

Receiver

RX-range
10 kHz - 3300 MHz
Modulations
AM   FM   W-FM   CW   USB   LSB
Sensitivity
10 - 40 kHz
CW: 22.3µV
40 - 100 kHz
CW: 1.5µV
AM: 4.5µV
100 kHz - 2 MHz
AM: 2.5µV
2 - 40 MHz
CW: 0.7µV
SSB: 0.7µV
AM: 1.5µV
FM: 0.9µV
40 MHz - 1 GHz
CW: 0.40µV
SSB: 0.40µV
AM: 0.89µV
FM: 0.50µV
W-FM: 1.50µV
1 - 2.5 GHz
CW: 0.40µV
SSB: 0.40µV
AM: 0.89µV
FM: 0.40µV
W-FM: 1.50µV
2.5 - 3.3 GHz
CW: 0.35µV
SSB: 0.35µV
AM: 0.90µV
FM: 0.50µV
W-FM: 1.50µV

CW/SSB/AM: 10dB S/N
FM/W-FM: 12dB SINAD
Selectivity
0.5 kHz: 0.5 kHz or better (-6dB), at least 2 kHz (-60dB)
3 kHz: 3 kHz or better (-6dB), at least 6 kHz (-60dB)
9 kHz: 9 kHz or better (-6dB), at least 30 kHz (-60dB)
15 kHz: 15 kHz or better (-6dB), at least 40 kHz (-60dB)
30 kHz: 30 kHz or better (-6dB), at least 70 kHz (-60dB)
110 kHz: 110 kHz or better (-6dB), at least 450 kHz (-60dB)
220 kHz: 220 kHz or better (-6dB), at least 600 kHz (-60dB)
300 kHz: 300 kHz or better (-6dB), at least 900 kHz (-60dB)
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 754 / 265 MHz
2nd: 10.7 MHz
3rd: 455 kHz
Image rejection
?
Audio output
1.5 w (at 8 ohms, THD < 10%)

Connections

Antenna
N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
10.8-16V DC
Current drain RX
2 A max
TX
-

Physical

Dimensions (w×h×d)
157 × 58 × 270 mm (6.18 × 2.28 × 10.63 in)
Weight
2.20 kg (4.9 lbs)
Form factor
Mobile
Manufactured
Between 2002 and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
10 VFOs.
2 RS232 ports + control head port.
Ultra-stable reference frequency oscillator (0.1 p.p.m.).
Accessories
-
RigReference ID
2374
MPN
AOR-AR-ONE

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-ONE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-ONE is around:

  • USD 166.00 ~ USD 19.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 22.00 Used / Poor eBay
2002 USD 3995.00 New / Mint RigReference
