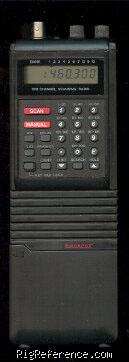

Released circa 1988 (?), the BC200XLT, along with little brother BC100XLT, were the first all-new new Bearcat handhelds from Uniden. Rechargeable NiCd cells were in a proprietary battery pack that attached to the bottom of the unit. Cellular blocked in the US
General characteristics
- HAM bands
- 6m 2m 70cm 33cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 10 bank(s) @ 15 channels/second
Receiver
- RX-range
- 29-54 / 108-174 / 406-512 / 806-956 MHz
- Modulations
- AM FM
- Sensitivity
- 0.4 µV 29-54 / 136-174 MHz
0.8 µV 118-136 MHz
0.5 µV 406-512 MHz
1.0 µV 809-956 MHz - Selectivity
- +/- 25 kHz, -55 dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 480 mW max
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC (+/- 10%) or 6×AA Ni-CAD cells
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 565 gr (1.2 lbs)
- Form factor
- Handheld
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 10 priority channels
- Accessories
- BP-200 battery pack
AD-140U AC adapter
PS-002 power cord - RigReference ID
- 2447
- MPN
- UNIDEN-BEARCAT-BC000200XLT
Manuals, diagrams and brochures
- Uniden-Bearcat-BC200XLT Owner's manual PDF - Unknown size, submitted by RigReference
- Uniden-Bearcat Bc200XLT Operating Guide PDF - 495.0 kB, submitted by RigReference
- Uniden BEArcat Bc200XLT Service Manual PDF - 2.53 MB, submitted by RigReference
