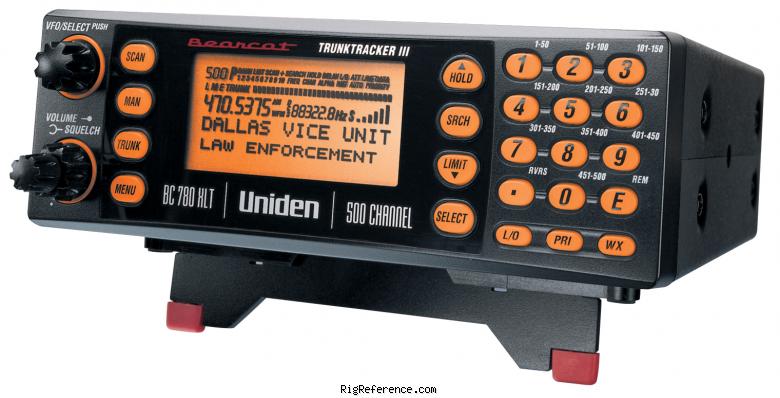

Uniden-Bearcat UBC780XLT Mobile HF/VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Trunktracker III

Frequency range

RX-range
25-512 / 806-956 / 1240-1300 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
5 / 7.5 / 10 / 12.5 / 25 / 50 / 100 kHz
Filters
-

Receiver

Modulations
AM   FM   N-FM   W-FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 700 mA
TX
-

Physical

Dimensions (w×h×d)
177 × 72 × 195 mm (6.97 × 2.83 × 7.68 in)
Weight
1.33 kg (2.9 lbs)
Form factor
Mobile
Manufactured
Between 2001 and 2006 in China (designed in Japan)
MPN

Other features

Memories
500 channels in 10 bank(s) @ 100 channels/second
Usage
Amateur / Ham radio operators
Features + options
Tracks Motorola, EDACS and LTR systems. CTCSS & DCS. RS-232.
