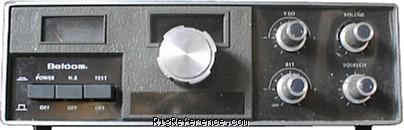

The Belcom Liner 2 is similar to the Belcom Liner 430 which operates on the 430 MHz band.
There is also the Belcom Liner 2DX. Exact differences are unclear.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 10 kHz + VXO (±6 kHz)
- Memories
- 24 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- USB LSB
- Sensitivity
- 0.5 µV (10 dB S/N)
- Selectivity
- 2.4 kHz (-6 dB) / 6 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 28 MHz
2nd: 7.8 MHz - Image rejection
- ?
- Audio output
- 2 W
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- USB LSB
- RF-output
- Max 20 W (PEP)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 220 × 70 × 250 mm (8.66 × 2.76 × 9.84 in)
- Weight
- 3.00 kg (6.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VXO
- Accessories
- LSB unit
Preamp - RigReference ID
- 2476
- MPN
- BELCOM-LINER-000002
