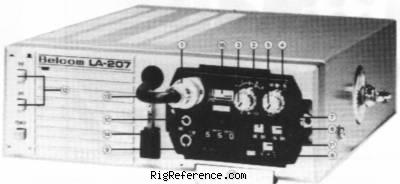

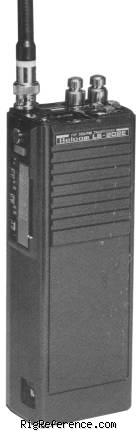

The Belcom LS-202E is a portable 2 meter transceiver. For increased usability and range the HT could be inserted into the LA-207 Mobile Console which had a 25 watt PA and operated from a 12 V DC power source.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM SSB
- RF-output
- High: 3.5 W, Low: 0.5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7-12V DC
- Current drain RX
- Max 200 mA
- TX
- Max 750 mA
Physical
- Dimensions (w×h×d)
- 62 × 165 × 40 mm (2.44 × 6.50 × 1.57 in)
- Weight
- 500 gr (1.1 lbs)
- Form factor
- Handheld
- Manufactured
- Between 1984 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2479
- MPN
- BELCOM-LS-000202E
Manuals, diagrams and brochures
- Belcom Ls202E PDF - 3.01 MB, submitted by Stig G
- LS-202 Main PDF - 688.3 kB, submitted by Stig G
- LS-202 PLL PDF - 535.5 kB, submitted by Stig G
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| The mod for the wider rx/tx rane requires two cuts on the pwb. | 2 years ago by Herdanto Herdanto | |
| additional info | 2 years ago by epkoncept | |
| Belcom LS-202 | 2 years ago by epkoncept | |
| LS202E | 4 years ago by Stig G |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Belcom LS-202E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Belcom LS-202E is around:
- USD 99.00
- JPY 3484.00
These estimates are based on the following prices:
