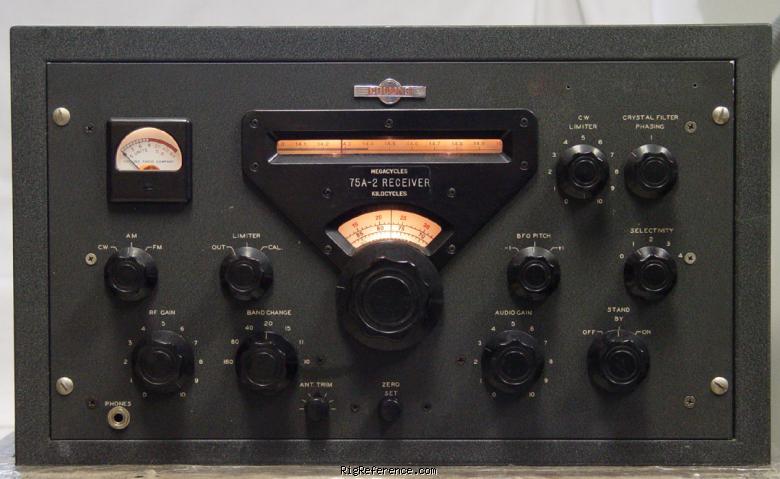

Collins 75A-2

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Collins 75A-2 rigs and spare parts on eBay

Find the Collins 75A-2 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

A number of 75A-2 receivers were modified either at the factory or with field modification kits which converted the 75-2 receivers to Collins 75A-3 receivers. These receivers had the escutcheon on the dial changed to read 75A-2A.

Original price 1951 in the US: $420.00

General characteristics

HAM bands: 160m 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-160 m
Modulations: AM FM CW
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: 15 tubes
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 558.8 × 317.5 × 337.82 mm (22.00 × 12.50 × 13.30 in)
Weight: 31.75 kg (70.1 lbs)
Form factor: Base Station
Manufactured: Between 1951 and 195x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2512
MPN: COLLINS-000075A-2

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
