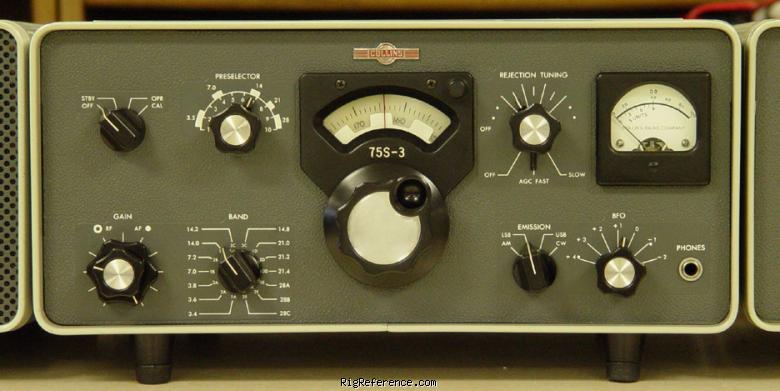

The Collins 75S-3 is a desktop shortwave receiver covering 10-80 m. It weighs 9 kg and has dimensions of 169 × 374 × 292 mm. It operates on Mains power.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 374 × 169 × 292 mm (14.72 × 6.65 × 11.50 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1961 and 1964 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2516
- MPN
- COLLINS-000075S-3
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 75S-3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Collins 75S-3 in Good condition is around:
- USD 400
These estimates are based on the following prices:
