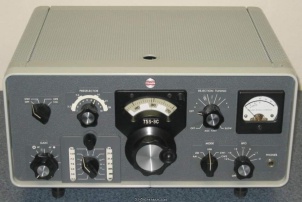

The Collins 75S-3C matches the Collins 32S-3 transmitter. This rig is very similar to the Collins 75S-3B, which doesn't feature the 14 crystal positions.

General characteristics

HAM bands
80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
14 channels in 1 bank(s)

Receiver

RX-range
10-80 m + 14 additional 200 kHz crystal positions
Modulations
AM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Requires external speaker

Connections

Antenna
RCA (Tulip)
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
375 × 197 × 317 mm (14.76 × 7.76 × 12.48 in)
Weight
9.10 kg (20.1 lbs)
Form factor
Base Station
Manufactured
Between 1964 and 1975 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
S-Meter
Preselector
100 kHz Crystal Calibrator
Rejection Tuning
AGC OFF/SLO/FST
BFO and Fiduciary Adjust
Accessories
-
RigReference ID
2519
MPN
COLLINS-000075S-3C

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 75S-3C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Collins 75S-3C is around:

  • USD 298.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 750.00 Used / Good eBay
