DLS 40

HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

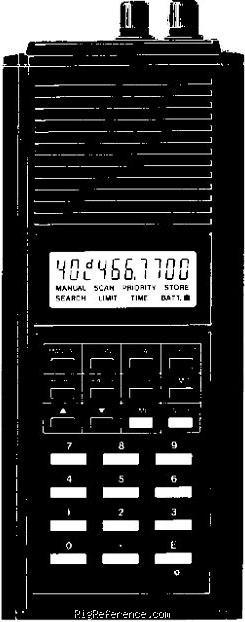

The DLS 40 is a handheld HF/VHF/UHF scanner / receiver. It covers 26-32 / 68-88 / 138-176 / 380-512 MHz and has 1 memory bank with 160 channels. The radio operates on 7.2-9V DC (6R6/AA). Dimensions are 175 × 74 × 37 mm.

General characteristics

HAM bands: 11m (CB) 2m 70cm 10m
Frequency stability: ?
Tuning steps: ?
Memories: 160 channels in 1 bank(s) @ 16 channels/second

Receiver

RX-range: 26-32 / 68-88 / 138-176 / 380-512 MHz
Modulations: FM
Sensitivity: 68-176 MHz: 0.5 µV (12 dB SINAD)
380-512 MHz: 1 µV (12 dB SINAD)
Selectivity: +/- 25 kHz (-50 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.2-9V DC (6R6/AA)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 74 × 175 × 37 mm (2.91 × 6.89 × 1.46 in)
Weight: ?
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2558
MPN: DLS-000040

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
