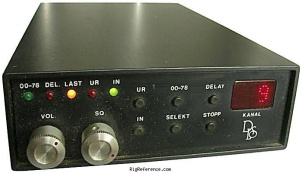

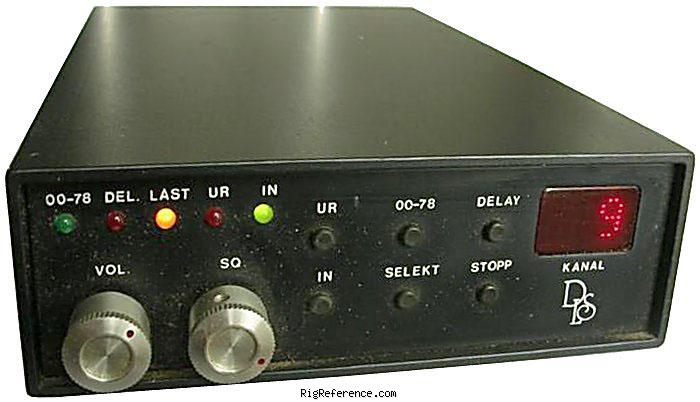

Tailor-made for swedish police & rescue (low band)
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 78.0125-79.9875 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double-conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Ceramic filter: Murata CFM455E - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- TV-antenne
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 120 × 40 × 180 mm (4.72 × 1.57 × 7.09 in)
- Weight
- 620 gr (1.4 lbs)
- Form factor
- Unknown
- Manufactured
- Between 19xx and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2561
- MPN
- DLS-000080
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used DLS 80. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
