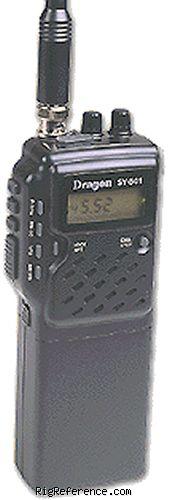

Dragon SY-501

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Dragon SY-501 is a handheld VHF transceiver. It covers 136-174 MHz for receive and 144-146 MHz for transmit. The RF output power is selectable between High: 5 W and Low: 350 mW. Power requirements are 6-16V DC with a current drain of 16-55 mA in receive mode.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 136-174 MHz
Modulations: FM
Sensitivity: 0.18 µV (12 dB SINAD)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 5 W, Low: 350 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 6-16V DC
Current drain RX: 16-55 mA
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2568
MPN: DRAGON-SY-000501
