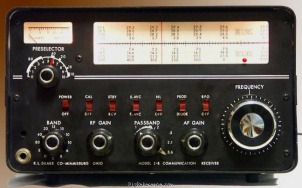

Drake 2-B Desktop Shortwave receiver

 (4.9/5)  Add a story   View all stories (2)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
80-10 m (3.5-30 MHz in 12 600kHz segments)
TX-range
-
HAM bands
-
Stability
< 400 cycles before warm up; < 100 cycles after warm up; < 100 cycles for 10% line voltage change
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
< 0.5µV @ 10 db signal to noise.
Selectivity
5kHz (6 dB) or better
Receiver system
-
IF-frequencies
-
Image rejection
60dB
Audio output
1W @ 3% THD

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
Mains (120 VAC)
Current drain RX
40W
TX
-

Physical

Dimensions (w×h×d)
305 × 180 × 230 mm (12.01 × 7.09 × 9.06 in)
Weight
6.55 kg (14.5 lbs)
Form factor
Base Station
Manufactured
Between 1961 and 1964 in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

As stable as a Collins

Drake 2-B, Desktop Shortwave receiver

In my experiance this is one of the finest receivers designed for it size and cost a real sleeper and a keeper.It has triple conversion and true band pass tunning and an am and product detector.and is as stable as a Collins.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2013

Drake 2-B/2-BQ

Drake 2-B, Desktop Shortwave receiver

This receiver is not only nostalgic, as it was my original ram receiver when I got licensed in 67, but I have restored one completely and it is a superb performer. The filters are adequate for even today's crowded bands and it as sensitive and stable as you could want. I use it for traffic handling and chasing DX when I can.

If you have an opportunity to pick up one of these, go for it, as you will not be disappointed.

Only thing it's missing is a good noise blanker but one of those can be added in the audio output.

Written by k6ctw on Sep 14, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 1967
USD 70.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Drake 2-B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Drake 2-B might be around:

  • USD 103.00
Price Condition Year User
USD 207.50 Used / Good 2010 eBay
USD 282.77 Used / Good 2010 eBay
