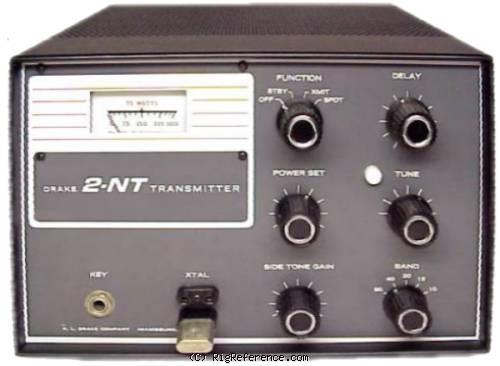

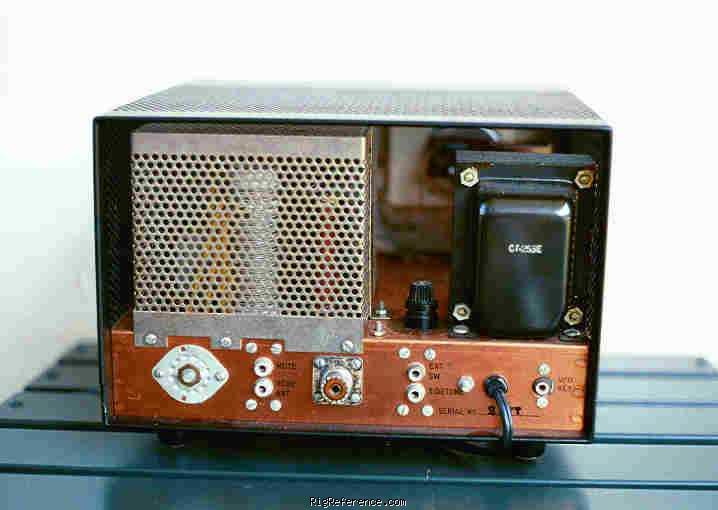

The Drake 2-NT is a CW transmitter. It is build up around 3-tube, and also has some semiconductor parts. Tubes include the 6EA8, 12BY7 and 6HF5 PA. Coverage includes the CW portions of the 80, 40, 20, 15 and 10 meter bands and frequency is controlled by a crystal or external VFO. Input variable to 100 watts with a "redline" at 75 watts for novice operation. The 2-NT has an internal 117 VAC power supply.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- XTAL/VFO controlled
- Memories
- None
Transmitter
- TX-range
- 80-10 m
- Modulations
- CW
- RF-output
- 40-60 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1964 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2574
- MPN
- DRAKE-000002-NT
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake 2-NT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transmitter equipment, the estimated value of the Drake 2-NT is around:
- USD 71 ~ USD 132
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
