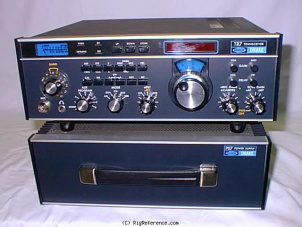

The Drake TR-7 is a solid-state amateur band transceiver covering 160 through 10 meters. Modes include USB, LSB, CW, RTTY and AM. It provides receive coverage from 0 to 30 MHz without crystals or gaps. Superior receive performance is achieved by using 48 MHz IF Up Conversion approach. Enjoy true passband tuning to combat heavy QRM. The standard filter is 2.3 kHz SSB.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 1.5-30 MHz
- Modulations
- AM CW USB LSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- 2.3 kHz (SSB)
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m
- Modulations
- AM CW USB LSB RTTY
- RF-output
- 120 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 25 A
Physical
- Dimensions (w×h×d)
- 346 × 116 × 317 mm (13.62 × 4.57 × 12.48 in)
- Weight
- 7.70 kg (17.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1978 and 198x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2607
- MPN
- DRAKE-TR-000007
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Drake TR-7 is around:
- EUR 50.00 ~ EUR 303.00
These estimates are based on the following prices:
