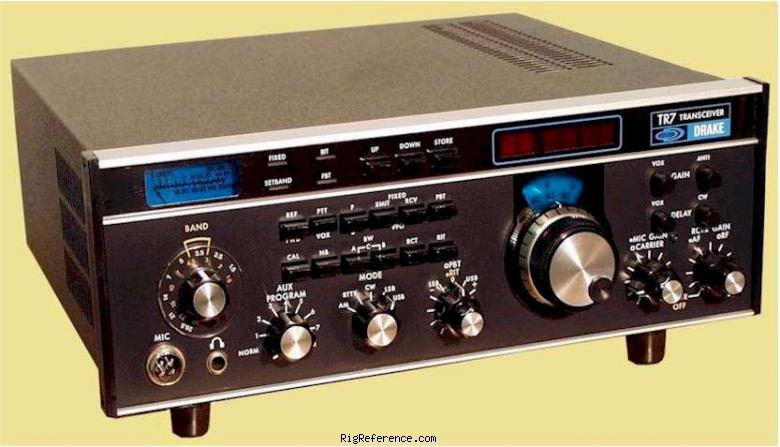

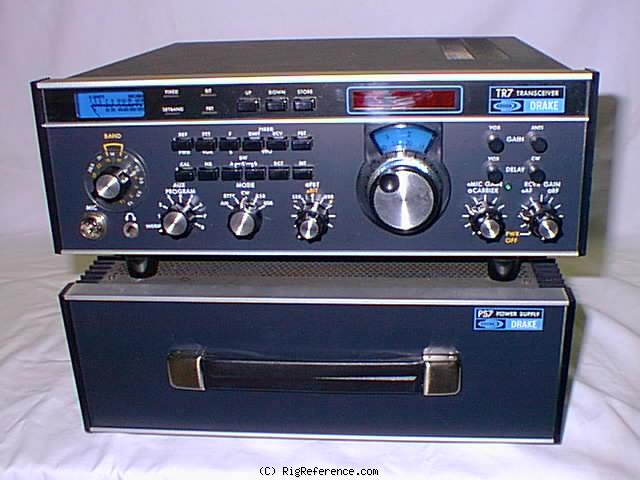

The Drake TR-7 is a solid-state amateur band transceiver covering 160 through 10 meters. Modes include USB, LSB, CW, RTTY and AM. It provides receive coverage from 0 to 30 MHz without crystals or gaps. Superior receive performance is achieved by using 48 MHz IF Up Conversion approach. Enjoy true passband tuning to combat heavy QRM. The standard filter is 2.3 kHz SSB.

General characteristics

HAM bands
160m  80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
1.5-30 MHz
Modulations
AM   CW   USB   LSB   RTTY
Sensitivity
?
Selectivity
?
Filters
2.3 kHz (SSB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
160-10 m
Modulations
AM   CW   USB   LSB   RTTY
RF-output
120 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
Max 25 A

Physical

Dimensions (w×h×d)
346 × 116 × 317 mm (13.62 × 4.57 × 12.48 in)
Weight
7.70 kg (17.0 lbs)
Form factor
Base Station
Manufactured
Between 1978 and 198x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2607
MPN
DRAKE-TR-000007

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Drake TR-7 is around:

  • EUR 81.00 ~ EUR 477.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 EUR 500.00 Used / Good lonewolf
2000 EUR 1500.00 Used / Good iz2uqe
