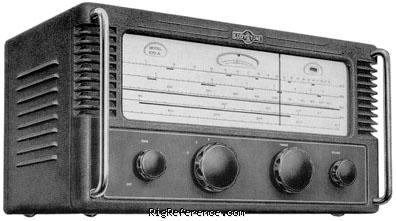

The 670 series was expressly designed for ship board cabin use. The 670A has five ranges: .15-.38, .54-1.5 3.7-10.6 and 10.5-30 MHz. The fifth "range" is marked "G" which is for a gramophone (phonograph) input. The broadcast bands are marked on the dial. The vernier tuning scale is a mechanical bandspread scheme that provides a quick and accurate means to return to a previously logged frequency. The tuning indicator (DM70) is a green fluorescent tube. With no signal the glow will extend to its full length. When a signal is received the glow contracts.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 150-380 kHz / 0.54-30 MHz in four bands
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single Conversion Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (AC or DC)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1953 and 1960 in Great Britain
Other features
- Usage
- Marine / Navy
- Features + options
- • Speaker Output • Dial Lamp • Rack Handles • Tuning Indicator • Speaker • Phono Input • Vernier Tuning • Log Scale 0-2500 • Tone • Flywheel Tuning
- Accessories
- -
- RigReference ID
- 2614
- MPN
- EDDYSTONE-000670A
Manuals, diagrams and brochures
- Eddystone 670 Brochure PDF - Unknown size, submitted by RigReference
- Eddystone 670A Instruction Manual PDF - 2.84 MB, submitted by RigReference
- Eddystone 670C Instruction Manual PDF - 6.64 MB, submitted by RigReference
