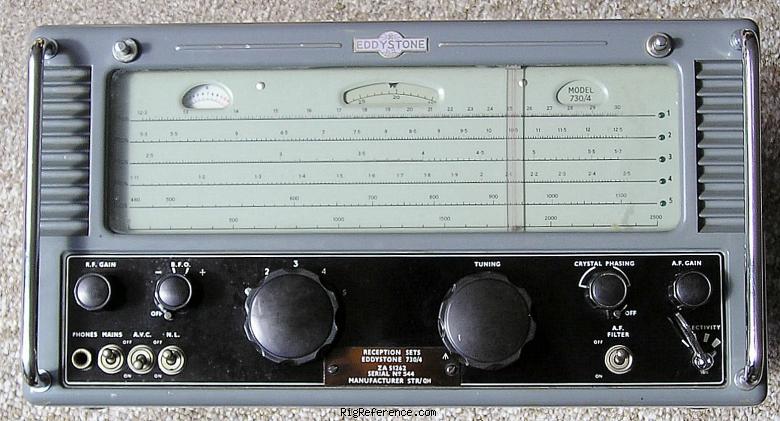

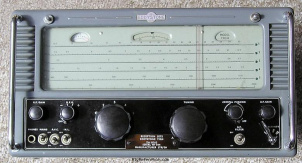

Eddystone 730/4

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Designed for the UK military.

General characteristics

HAM bands
?
Frequency stability
Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up
Tuning steps
?

Receiver

RX-range
0.48-30 MHz in 5 bands
Modulations
AM   CW
Sensitivity
AM: 5 µV
CM 1-2 µV
Selectivity
1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)
Filters
500 Hz switchable crystal filter
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
1 W

Connections

Antenna
-
Impedance
70/80Ω
Other
-

Electrical

Power requirements
Mains (100-125 or 200-250 V AC) or external PSU
Current drain RX
80 W
TX
-

Physical

Manufactured
Between 1957 and 1961 in Great Britain
Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station

Other features

Memories
?
Usage
Military communication
Features + options
?
Accessories
?
MPN
EDDYSTONE-000730/4

Manuals, diagrams and brochures

Eddystone 730/4 Service Manual submitted by RigReference
Eddystone-730/4 Military Handbook submitted by RigReference
