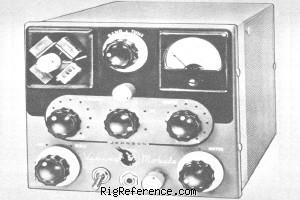

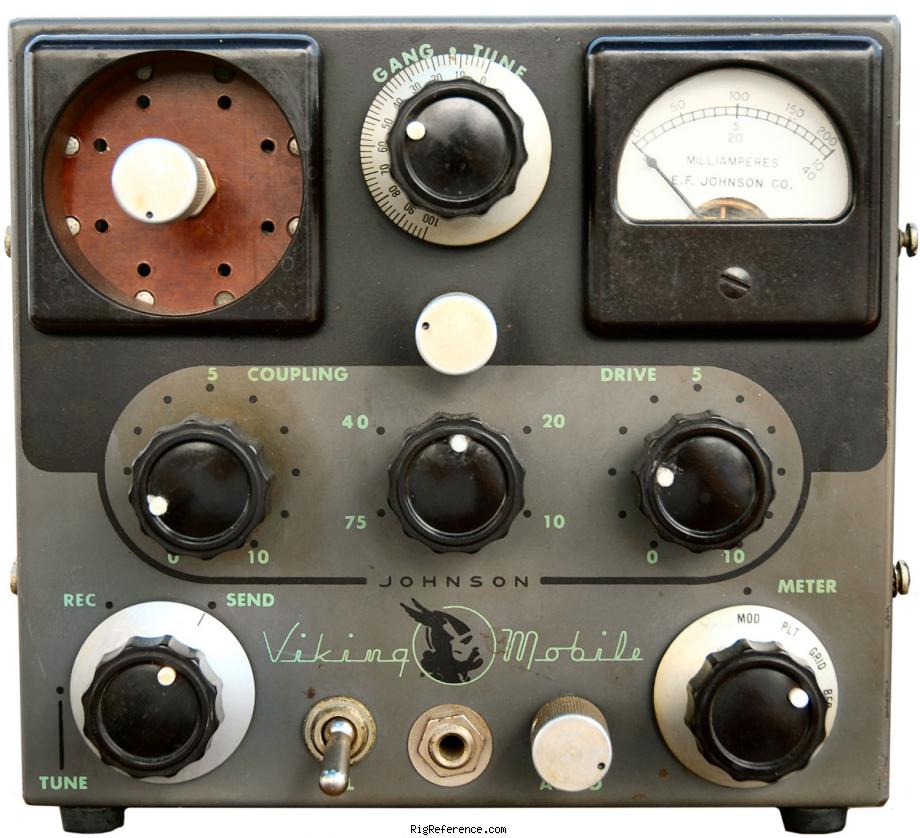

The Viking Mobile is crystal controlled, and was sold as a an under-dash mobile transmitter in the 1950s. It uses seven vacuum tubes with an 807 final amplifier, modulated by a pair of push-pull 807s. It uses an external dynamotor power supply, and yes, the rare companion dynamotor is included with this transmitter. It supplies 400V and 800V DC for the transmitter. This unit is either factory wired, or it was done as a kit by an expert.
New price 1952 in the US: $99.50
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 80/20/10 m
- Modulations
- AM
- RF-output
- 30-60 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 165 × 178 × 260 mm (6.50 × 7.01 × 10.24 in)
- Weight
- 6.80 kg (15.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1952 and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 4 × XTAL selector (VFO option), 807 final.
- Accessories
- -
- RigReference ID
- 2644
- MPN
- E.F.-JOHNSON-VIKING-MOBILE
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used E.F. Johnson Viking Mobile. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the E.F. Johnson Viking Mobile is around:
- USD 19.00
These estimates are based on the following prices:
