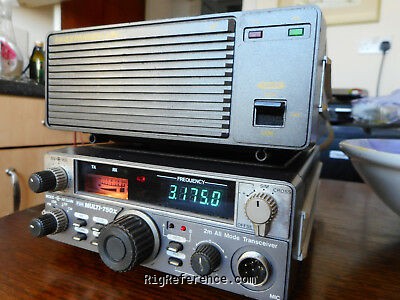

70 cm/10 W option with the FDK Expander-430

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 / 100Hz kHz
Memories
None

Receiver

RX-range
144-146 MHz (Europe)
144-148 MHz (USA)
70 cm optional
Modulations
FM   CW   USB   LSB
Sensitivity
FM: -4dBu (20 dB noise quieting)
SSB/CW: -8dBu (10 dB S/N)
Selectivity
FM: 15 kHz (-6 dB), 25 kHz (-70 dB)
SSB/CW: 2.2 kHz (-6 dB), 6 kHz (-60 dB)
Filters
?
Receiver system
Single/double conversion superheterodyne (SSB-CW/FM)
IF-frequencies
1st: 10.7 MHz
2nd: 455 KHz
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
70 cm optional
Modulations
FM   CW   USB   LSB
RF-output
High: 20 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11-15V DC
Current drain RX
400-800 mA
TX
Max 5 A

Physical

Dimensions (w×h×d)
162 × 62 × 260 mm (6.38 × 2.44 × 10.24 in)
Weight
2.60 kg (5.7 lbs)
Form factor
Mobile
Manufactured
Between 1983 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
Expander 430X: 70 cm/10 W option
RigReference ID
2667
MPN
FDK-MULTI-000750XX
