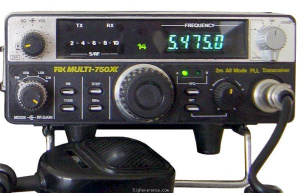

FDK Multi-750XX

Mobile VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find FDK Multi-750XX rigs and spare parts on eBay Find the FDK Multi-750XX on Amazon
We receive a small fee when you buy through these links, thank you!

70 cm/10 W option (Expander 430X)

Frequency range

RX-range
144-146 MHz (Europe)
144-148 MHz (USA)
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
HAM bands
?
Stability
?
Tuning steps
5 / 100Hz kHz
Filters
?

Receiver

Modulations
FM   CW   SSB
Sensitivity
FM: -4dBu (20 dB noise quieting)
SSB/CW: -8dBu (10 dB S/N)
Selectivity
FM: 15 kHz (-6 dB), 25 kHz (-70 dB)
SSB/CW: 2.2 kHz (-6 dB), 6 kHz (-60 dB)
Receiver system
Single/double conversion superheterodyne (SSB-CW/FM)
IF-frequencies
1st: 10.7 MHz
2nd: 455 KHz
Image rejection
?
Audio output
?

Transmitter

Modulations
FM   CW   SSB
RF-Output
High: 20 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
11-15V DC
Current drain RX
400-800 mA
TX
Max 5 A

Physical

Dimensions (w×h×d)
162 × 62 × 260 mm (6.38 × 2.44 × 10.24 in)
Weight
2.60 kg (5.7 lbs)
Form factor
Mobile
Manufactured
Between 1983 and 19xx
MPN
FDK-MULTI-000750XX

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.
