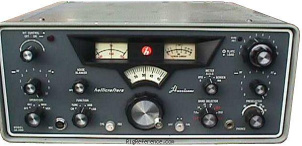

Hallicrafters SR-2000 Hurricane Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Hallicrafters SR-2000 Hurricane HF transceiver covers amateur bands between 80 and 10 meters. The **P-2000* power supply is a separate unit and contains the speaker and final amplifier plate voltage and current meters. An optional VFO (HA-20) was available for separate control of transmit and receive frequencies. The P-2000 was prices at USD 450.

Frequency range

RX-range
10-80 m
TX-range
10-80 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
2.1 kHz crystal lattice

Receiver

Modulations
CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
Double conversion, 19 tubes
IF-frequencies
1st: 6/6.5 MHz
2nd: 1650 kHz
Image rejection
-
Audio output
via speaker in P-2000 power supply unit

Transmitter

Modulations
CW   SSB
RF-Output
SSB: 2 KW (PEP input), CW: 900 W (input)

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
Mains (115/230 V AC)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
419 × 188 × 381 mm (16.50 × 7.40 × 15.00 in)
Weight
-
Form factor
Base Station
Manufactured
Between 1965 and 1972 in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
VOX
MOX
PTT
AALC
Break-in CW keying
CW side-tone
Crystal calibrator
Full metering
Noise blanker
RIT
Two speed cooling fan
Accessories
-
