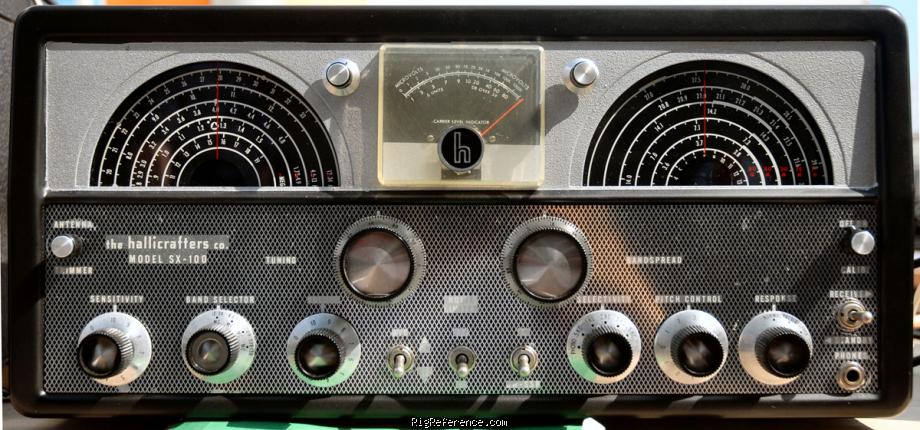

The Hallicrafters SX-100 is a desktop HF/VHF receiver covering 0.538-1.58 / 1.72-34 MHz. It requires mains power and has a weight of 15.6 kg. Dimensions are 226.06 × 469.9 × 279.4 mm. Current drain in receive mode is 105 mA @ 280 V, 1.4 A @ 6.3 V.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.538-1.58 / 1.72-34 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50/600 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 105 mA @ 280 V, 1.4 A @ 6.3 V
- TX
- -
Physical
- Dimensions (w×h×d)
- 469.9 × 226.06 × 279.4 mm (18.50 × 8.90 × 11.00 in)
- Weight
- 15.60 kg (34.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1955 and 1961 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2805
- MPN
- HALLICRAFTERS-SX-000100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Hallicrafters SX-100 is around:
- USD 2.00 ~ USD 10.00
These estimates are based on the following prices:
