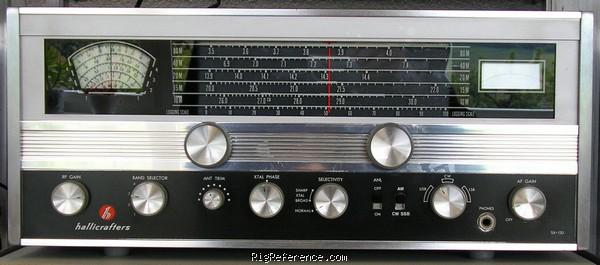

The Hallicrafters SX-130 general coverage receiver tunes from 535 to 31500 kHz in four bands. The main ranges: .535-1.61, 1.725-4.7, 4.5-13 and 11.9-31.5 MHz. Bandspread ranges: 3.5-4, 7-7.4, 13.9-14.4, 20-22 and 26-30 MHz.
The circuit consists of: 6DC6 RF Amp, 6EA8 Mixer/Osc, 6EA8 1st IF Amp/Crystal Sel., 6BA6 2nd IF Amp, 6AL5 AM Detector/NL, 6BE6 BFO/Product Detector, 6GW8 AF Amp/Output and diode.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.535-31.5 (1.610-1.725 gap)
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 479 × 203 × 248 mm (18.86 × 7.99 × 9.76 in)
- Weight
- 11.30 kg (24.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1965 and 1969
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Headphone Jack
S-Meter
Bandspread
Product Detector SSB/CW
RF Gain
ANL
BF0
Antenna Trimmer
Mute Terminals
Crystal Phasing
Dial Lamp
Speaker Terminals - Accessories
- -
- RigReference ID
- 2814
- MPN
- HALLICRAFTERS-SX-000130
Manuals, diagrams and brochures
-
No documents available for this particular model.
