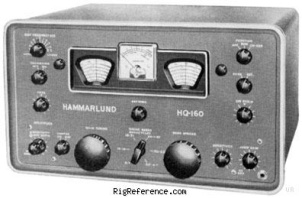

The Hammarlund HQ-160 general coverage receiver tunes from 540 to 30000 kHz in six ranges: .54-1.32, 1.32-3.2, 3.2-5.7, 5.7-10, 10-18 and 18-31 MHz. Bandspread: 80, 40, 20, 15 and 10 Meters. Other enhancements include: antenna trimmer, noise limiter, RF gain, S-meter, stand-by and AVC on/off. This radio does not have a built in speaker. The suggested optional speaker is the S-200.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.54-31 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
482 × 266 × 330 mm (18.98 × 10.47 × 12.99 in)
Weight
17.00 kg (37.5 lbs)
Form factor
Base Station
Manufactured
Between 1958 and 1960 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2843
MPN
HAMMARLUND-HQ-000160
