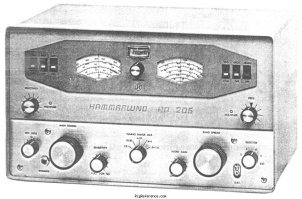

Hammarlund HQ-205 Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Hammarlund HQ-205 general coverage tunes from 540 to 30000 kHz in four ranges. The amateur bands are all bandspread. A BFO facilitates SSB/CW tuning. A Q-multiplier operates independently of the BFO. Other enhancements include: noise limiter, RF gain, S-meter, stand-by and AVC on/off. This receiver additionally has a built in CB transmitter with five internal crystal positions and one on the front panel. This radio does not have a built in speaker. There are 3.2 ohm speaker terminals and a microphone jack on the rear panel. The suggested optional speaker is the S-205

Frequency range

RX-range
0.54-30 MHz
TX-range
6 CB channels, crystal controlled
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
1 µV (10 dB S/N)
Selectivity
-
Receiver system
11 tubes
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   CW   SSB
RF-Output
5 W

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50/75 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
420 × 228 × 232 mm (16.54 × 8.98 × 9.13 in)
Weight
12.00 kg (26.5 lbs)
Form factor
Base Station
Manufactured
Between 1967 and 1969 in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Hammarlund documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Hammarlund HQ-205. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Hammarlund HQ-205 might be around:

  • USD 2.00
Price Condition Year User
USD 199.95 Mint / New 1968 NN4BJ
USD 199.95 Mint / New 1968 NN4BJ
