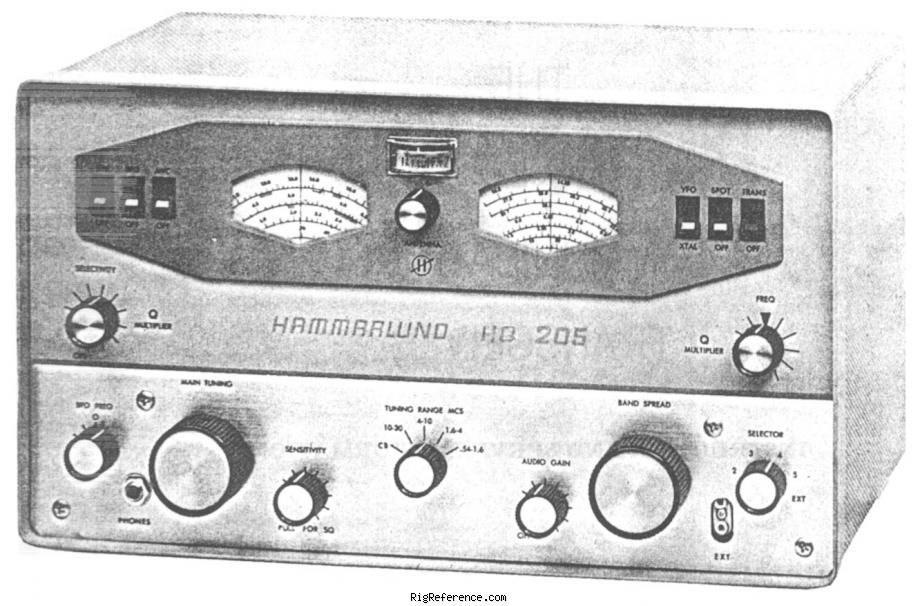

The Hammarlund HQ-205 general coverage tunes from 540 to 30000 kHz in four ranges. The amateur bands are all bandspread. A BFO facilitates SSB/CW tuning. A Q-multiplier operates independently of the BFO. Other enhancements include: noise limiter, RF gain, S-meter, stand-by and AVC on/off. This receiver additionally has a built in CB transmitter with five internal crystal positions and one on the front panel. This radio does not have a built in speaker. There are 3.2 ohm speaker terminals and a microphone jack on the rear panel. The suggested optional speaker is the S-205
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.54-30 MHz
- Modulations
- -
- Sensitivity
- 1 µV (10 dB S/N)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- 11 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 6 CB channels, crystal controlled
- Modulations
- AM CW SSB
- RF-output
- 5 W
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 420 × 228 × 232 mm (16.54 × 8.98 × 9.13 in)
- Weight
- 12.00 kg (26.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1967 and 1969 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2851
- MPN
- HAMMARLUND-HQ-000205
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hammarlund HQ-205. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hammarlund HQ-205 in Good condition is around:
- USD 150
These estimates are based on the following prices:
