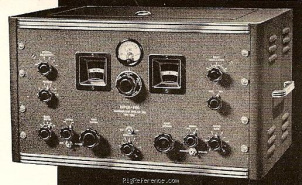

Hammarlund SP-220-X

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

0.54-20 MHz

Modulations

AM   CW

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Single conversion superheterodyne

IF-frequencies

465 kHz

Image rejection

?

Audio output

12" HiFi speaker

Connections

Antenna

Clamps / screws

Impedance

100Ω

Other

-

Electrical

Power requirements

Separate PSU

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

?

Weight

33.00 kg (72.8 lbs)

Form factor

Base Station

Manufactured

Between 1939 and 1945 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2863

MPN

HAMMARLUND-SP-000220-X

Manuals, diagrams and brochures

Hammarlund SP-200X Schematic Diagram GIF - 265.9 kB, submitted by RigReference

Hammarlund SP-200X PSU Schematic Diagram GIF - 125.5 kB, submitted by RigReference



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hammarlund SP-220-X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Hammarlund SP-220-X in Good condition is around:

• USD 327
