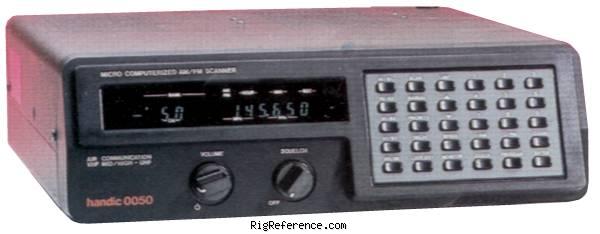

The Handic 0050 is a VHF/UHF scanner/receiver. It covers 68-88 / 108-136 / 138-174 / 380-470 MHz and has tuning steps of 5 / 12.5 / 25 kHz. The IF frequency is 10.7 MHz. It features 5 memory banks with 50 channels total, and has an audio output of 2W max. The Handic 0050 operates on 13.8V DC or mains power. Dimensions are 80 × 260 × 270 mm and it weighs 3.5 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 50 channels in 5 bank(s) @ 6 channels/second
Receiver
- RX-range
- 68-88 / 108-136 / 138-174 / 380-470 MHz
- Modulations
- AM FM
- Sensitivity
- VHF Mid band: 0.5 µV
AIRCRAFT band: 1 µV
VHF High band: 0.5 µV
UHF band: 1 µV - Selectivity
- -6 dB ±9 kHz
-50 dB ±15 kHz - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 10.7 MHz
- Image rejection
- ?
- Audio output
- 2 W max
Connections
- Antenna
- SO-239 + Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 260 × 80 × 270 mm (10.24 × 3.15 × 10.63 in)
- Weight
- 3.50 kg (7.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2882
- MPN
- HANDIC-000050
Manuals, diagrams and brochures
- Handic 0050 Service Manual PDF - 4.45 MB, submitted by Ferry Pals
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Handic 0050. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Handic 0050 is around:
- EUR 47.00
These estimates are based on the following prices:
