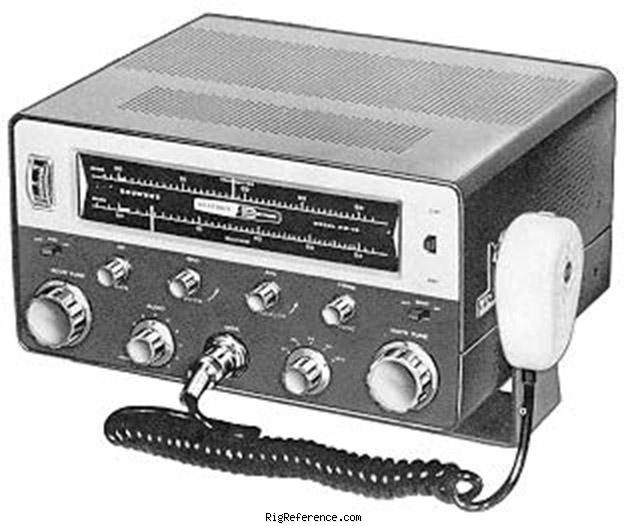

The Heathkit HW-10 'Shawnee' and Heathkit HW-20 'Pawnee' are similar in design, except for frequency range.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
49.8-54.0 MHz
Modulations
AM   CW
Sensitivity
0.5 µV provides output 10 dB above noise
Selectivity
15 kHz (-6 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 22-26 MHz (tunable)
2nd: 2 MHz
Image rejection
> 70 dB
Audio output
3 W internal speaker, 15 W PA output

Transmitter

TX-range
49.8-54.0 MHz
Modulations
AM   CW
RF-output
AM: 8 W, CW: 10 W

Connections

Antenna
SO-239
Impedance
50-72Ω
Other
-

Electrical

Power requirements
6.3V DC, 12.6V DC or mains
Current drain RX
60 W
TX
120 W

Physical

Dimensions (w×h×d)
305 × 152 × 254 mm (12.01 × 5.98 × 10.00 in)
Weight
?
Form factor
Mobile
Manufactured
Between 19xx and 19xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2918
MPN
HEATHKIT-HW-000010-'SHAWNEE'

Manuals, diagrams and brochures

No documents available for this particular model.
