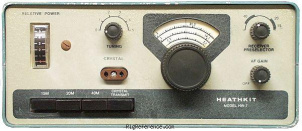

The Heathkit HW-7 was the first QRP transceiver offered by Heathkit. It was available from 1972 through 1975. The HW-7 provided coverage of 40, 20, 15 meter bands. The transceiver featured a very simple direct-conversion receiver design and this simple design led to performance problems including sometimes-severe broadcast-band interference, microphonics, and AC hum. According to the January, ARRL review (January, 1973), the original price of the HW-7 was about USD 70.
General characteristics
- HAM bands
- ?
- Frequency stability
- less than 100 Hz drift after 10 minutes warmup
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 15/20/40 m
- Modulations
- CW SSB
- Sensitivity
- less than 1 µV provides readable signal
- Selectivity
- 2 kHz (-6 dB)
- Filters
- ?
- Receiver system
- Direct conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 15/20/40 m
- Modulations
- CW
- RF-output
- 40m: 3 W, 20m: 2.5 W, 15m: 2 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13V DC
- Current drain RX
- 35 mA
- TX
- 450 mA max
Physical
- Dimensions (w×h×d)
- 235 × 216 × 108 mm (9.25 × 8.50 × 4.25 in) including protrusions
- Weight
- 2.04 kg (4.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1972 and 1975 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2929
- MPN
- HEATHKIT-HW-000007
Manuals, diagrams and brochures
- Heathkit HW-7 Assembly Manual PDF - 8.03 MB, submitted by Wim
- Heathkit HW-7 Schematic diagram PDF - 246.2 kB, submitted by Wim
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Heathkit HW-7 in Good condition is around:
- USD 117
