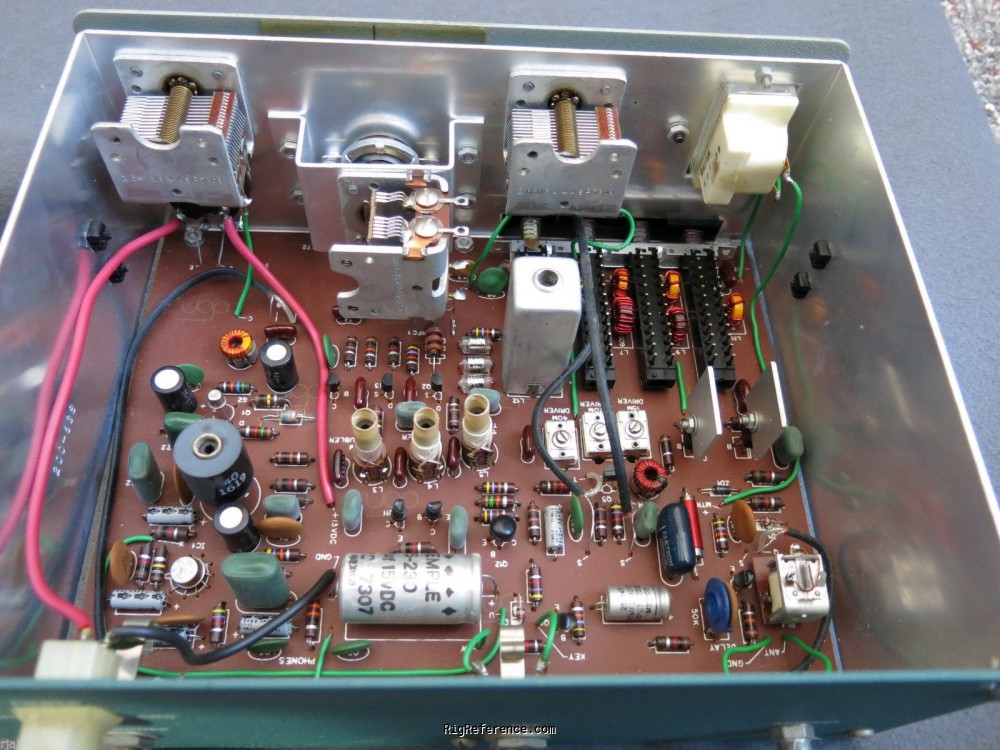

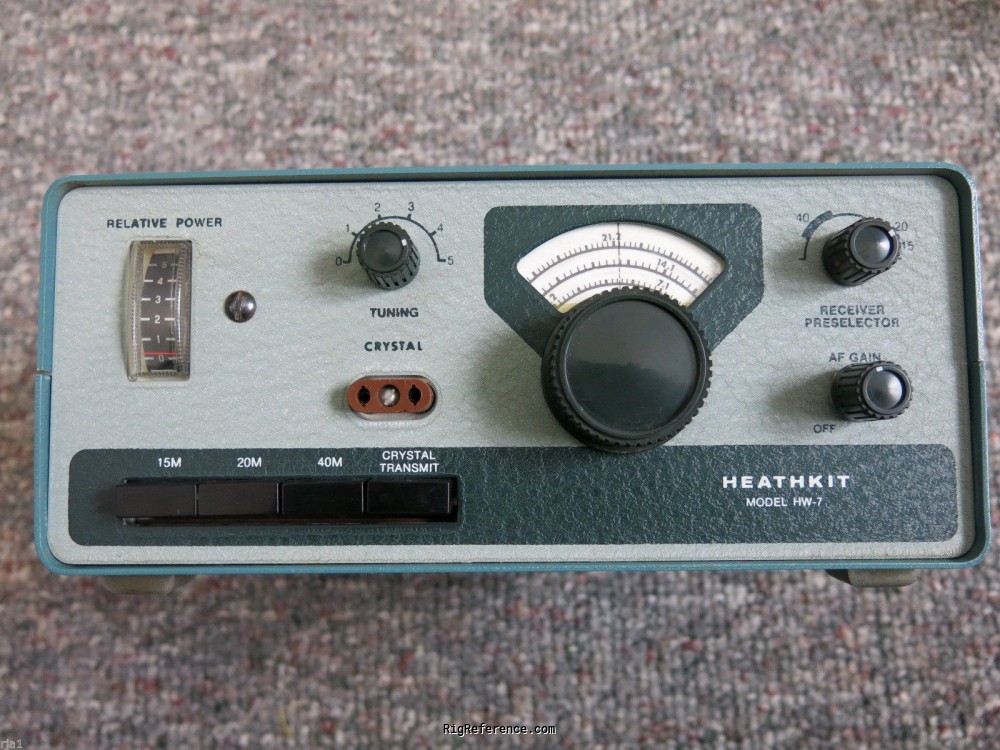

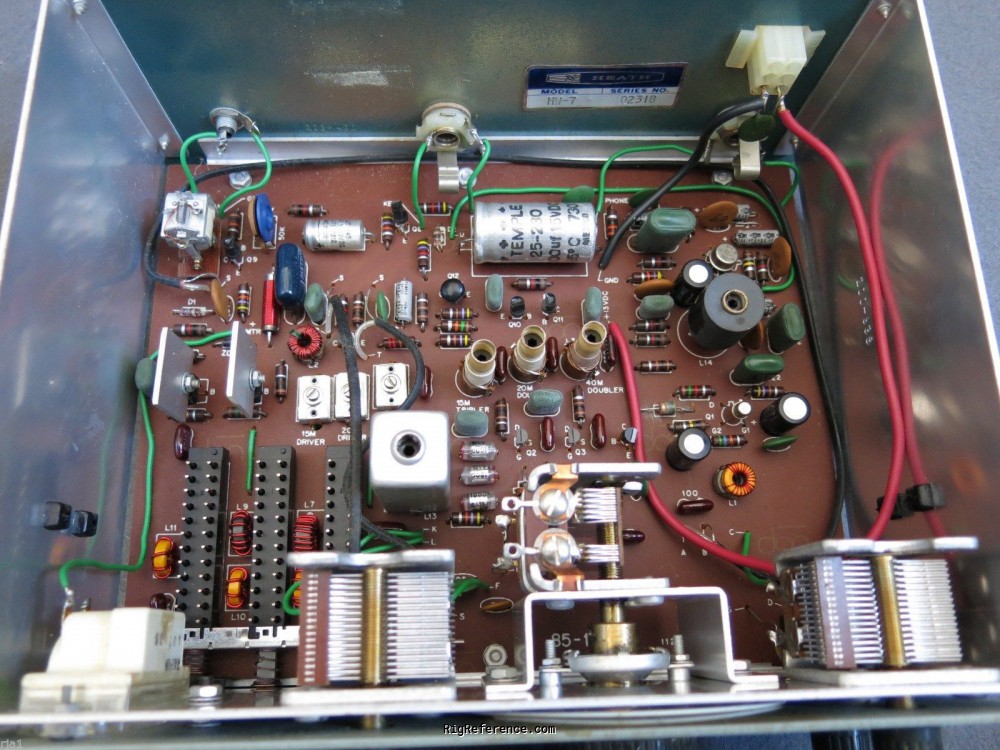

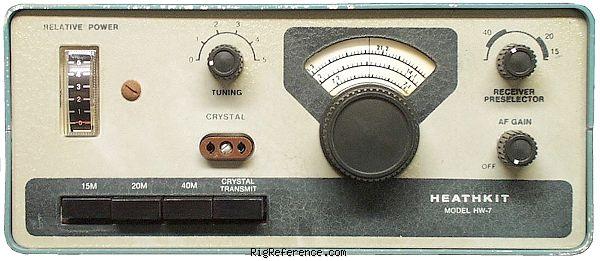

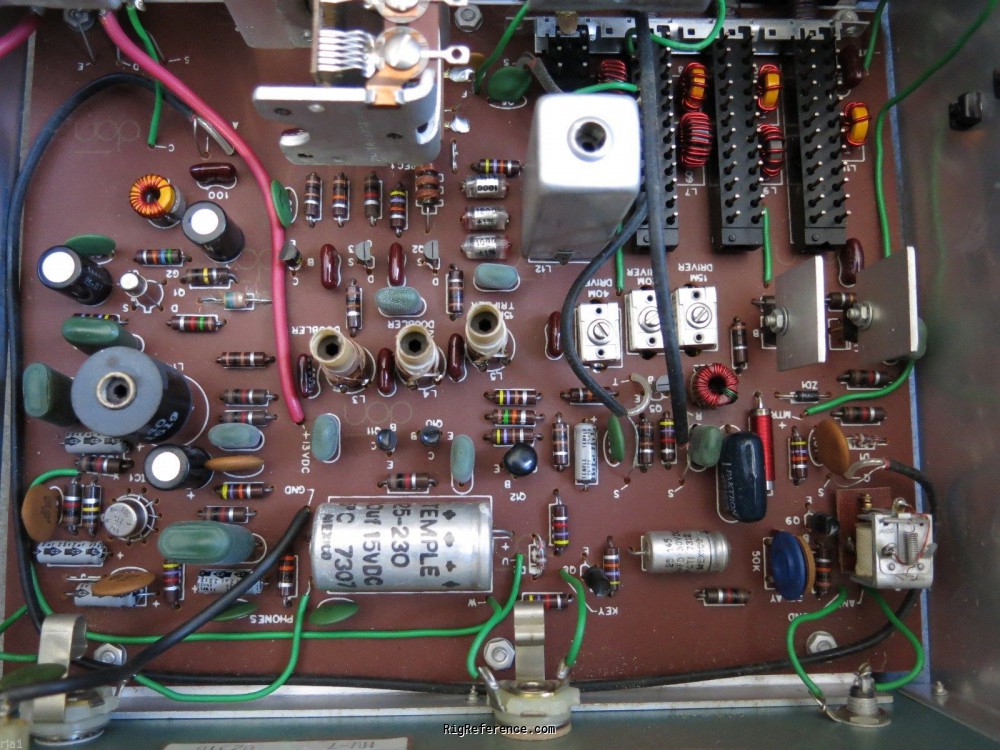

The Heathkit HW-7 was the first QRP transceiver offered by Heathkit. It was available from 1972 through 1975. The HW-7 provided coverage of 40, 20, 15 meter bands. The transceiver featured a very simple direct-conversion receiver design and this simple design led to performance problems including sometimes-severe broadcast-band interference, microphonics, and AC hum. According to the January, ARRL review (January, 1973), the original price of the HW-7 was about USD 70.

General characteristics

HAM bands
?
Frequency stability
less than 100 Hz drift after 10 minutes warmup
Tuning steps
?
Memories
?

Receiver

RX-range
15/20/40 m
Modulations
CW   SSB
Sensitivity
less than 1 µV provides readable signal
Selectivity
2 kHz (-6 dB)
Filters
?
Receiver system
Direct conversion
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
15/20/40 m
Modulations
CW
RF-output
40m: 3 W, 20m: 2.5 W, 15m: 2 W

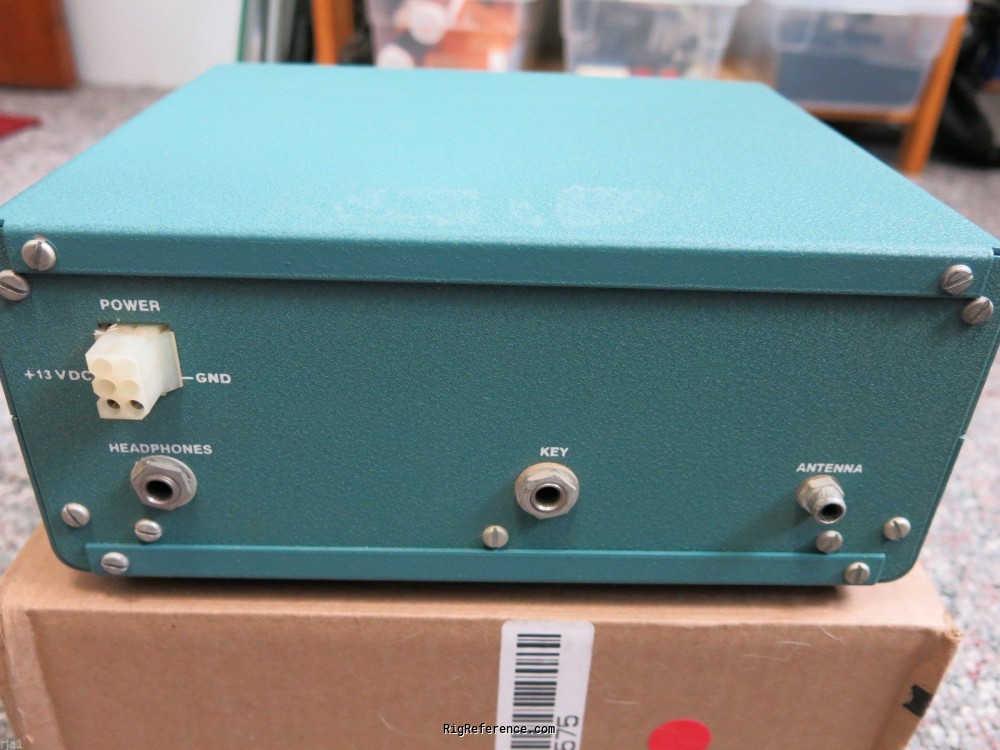

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
13V DC
Current drain RX
35 mA
TX
450 mA max

Physical

Dimensions (w×h×d)
235 × 216 × 108 mm (9.25 × 8.50 × 4.25 in) including protrusions
Weight
2.04 kg (4.5 lbs)
Form factor
Base Station
Manufactured
Between 1972 and 1975 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2929
MPN
HEATHKIT-HW-000007

Manuals, diagrams and brochures

Heathkit HW-7 Assembly Manual PDF - 8.03 MB, submitted by Wim
Heathkit HW-7 Schematic diagram PDF - 246.2 kB, submitted by Wim

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit HW-7 is around:

  • USD 84.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2014 USD 117.00 Used / Good KV4NK
