Heathkit SW-7800 Desktop Shortwave receiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

New price 1985 in the US: $349.95

Frequency range

RX-range
0.15-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Built-in telescopic
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 1984 and 1990 in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Heathkit SW-7800 Review

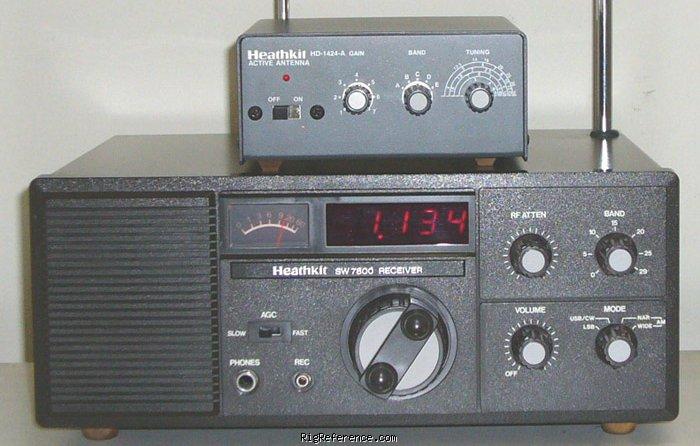

Heathkit SW-7800, Desktop Shortwave receiver

The Heathkit SW-7800 is a rather obscure shortwave receiver. Some stated a poor receiver and another stated a horrible receiver. However, I disagree after owning about 50 vintage receivers with some in the same price class. On the other hand, a few simple modifications makes for a fine entry level receiver. (Google SW-7800 modifications).

The modifications includes shielding the frequency counter ribbon cable and a resistor easily soldered on the audio driver resistor. Do not replace the detector diodes per some posts. Audio response is poorer. (Google SW-7800 mods).

For lower audio frequency response, replacing a few capacitors performs well. But, this is not necessary.

The SW-7800 is an analog design with a frequency counter. The analog design makes for no phase noise and the IF is fairly quiet. I owned a Kenwood R-2000 and frankly was miserable to listen to on AM due to PLL phase noise and a noisy IF section. I prefer the SW-7800 for AM SWLing. And, although missing a noise blanker, I never needed it on this receiver for AM use.

Doe to the SW-7800 using an analog tuning capacitor, about 1-2kHz drift is present at warm up. After about 20 minutes drift is minimal. The frequency display is far superior to an analog dial for finding shortwave stations.

The built-in speaker sounds good and performs well in the voice frequency range. Two AM filter sections are available on the front panel of 6kHz and 2.5kHz. For the most part I use the 2.5kHz ceramic filter on AM. The wider filter skirt design does provide good quality receive plus reduced band noise.

Compared to a restored and aligned tube type vintage Hallicrafters SX-43, the SW-7800 is superior. A random wire antenna of 20 feet was used in the test.

If you get a chance to pick up the SW-7800 in the `$75-$125 range, but it.
