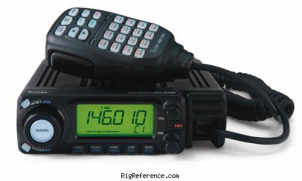

ICOM IC-208D Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
118-1000 MHz
TX-range
144-146 / 430-440 MHz (Asia)
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
-
Selectivity
12 kHz (-6 dB), 30 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
Better than 60 dB
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 50 / 50 W, Medium: 15 / 15 W, Low: 5 / 5 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
Max 11.5 A

Physical

Dimensions (w×h×d)
141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in) dimensions control head: 111×40×39 mm
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2003 and 200x
MPN

Other features

Memories
500 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS & DTMF. Multi color display.
