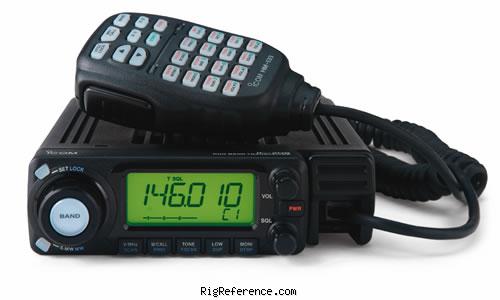

The ICOM IC-208D is a Mobile VHF/UHF Transceiver. It covers 118-1000 MHz for receive and 144-146 / 430-440 MHz (Asia) for transmit. Image rejection is better than 60 dB. RF output power options are High: 50 / 50 W, Medium: 15 / 15 W, Low: 5 / 5 W. It features CTCSS & DTMF and a multi color display. The radio has 1 memory bank with 500 channels. Power requirements are 13.8V DC. Current drain on transmit is Max 11.5 A. Dimensions are 40 × 141 × 185 mm. The weight is 1.2 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 118-1000 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- 12 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Asia)
- Modulations
- FM
- RF-output
- High: 50 / 50 W, Medium: 15 / 15 W, Low: 5 / 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in) dimensions control head: 111×40×39 mm
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS & DTMF. Multi color display.
- Accessories
- -
- RigReference ID
- 2980
- MPN
- ICOM-IC-000208D
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-208D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-208D is around:
- USD 168 ~ USD 311
This estimate is based on similar equipment and may not reflect the exact value of this model.
