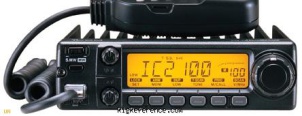

ICOM IC-2100H Mobile VHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

The Icom IC-2100H 2 meter FM mobile features a rugged design and an easy-to-read alphanumeric display. The displays may be set to green or amber. The receiver covers 136-174 MHz and the transmitter delivers 55, 10 or 5 watts of output. The improved receive IMD helps provide protection from excessively strong signals such as pager signals. And the squelch attenuator (approx 10 dB) allows you to reduce interference from strong nearby signals. A winning combination for receive performance. The oversized tuning dial is easy to grab while on the move and the large 4-level backlit display clearly provides key information at a glance. Memory channels can be assigned names for easy recognition and easy access. The 2100H supports three different scan modes: Full Scan, Memory Scan, Programmed Scan and five scan resume conditions.

Other features include: 113 memories, alphanumeric notes, 3-way priority watch and independently programmable Rx/Tx and tone squelch. There is an external speaker jack on the rear panel. The IC-2100H is built to rugged MIL SPEC 810C/D/E Shock-Vib standards and has a convenient front mounted mic jack. This radio includes the sophisticated, backlit HM-133S DTMF hand mic.

Frequency range

RX-range
136-174 MHz
TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
HAM bands
2m
Stability
±10 ppm (-10°C to +60°C)
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
Less than 0.18 µV for 12 dB SINAD
Selectivity
More than 12 kHz at -6 dB
Less than 28 kHz at -60 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 15.65 MHz
2nd: 450 kHz
Image rejection
> 60 dB
Audio output
2.4 W at 10% distortion with an 8 load

Transmitter

Modulations
FM
RF-Output
High: 55 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
0.8-1 A
TX
12 A max

Physical

Dimensions (w×h×d)
140 × 40 × 180 mm (5.51 × 1.57 × 7.09 in) (projections not included)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 199x and 199x in Japan
MPN
ICOM-IC-002100H

Other features

Memories
113 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

ICOM IC-2100H Instruction Manual.pdf submitted by RigReference

Upload relevant documents

Show other documents.

Reviews & stories

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-2100H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-2100H might be around:

  • USD 111.00
Price Condition Year User
USD 150.00 New / Mint 2002 n0nab
USD 95.00 Used / Good 2007 KenH
USD 100.00 Used / Good 2008 KenH
USD 225.00 Used / Mint 2010 Cliff Fox
