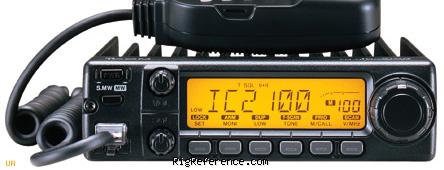

The Icom IC-2100H 2 meter FM mobile features a rugged design and an easy-to-read alphanumeric display. The displays may be set to green or amber. The receiver covers 136-174 MHz and the transmitter delivers 55, 10 or 5 watts of output. The improved receive IMD helps provide protection from excessively strong signals such as pager signals. And the squelch attenuator (approx 10 dB) allows you to reduce interference from strong nearby signals. A winning combination for receive performance. The oversized tuning dial is easy to grab while on the move and the large 4-level backlit display clearly provides key information at a glance. Memory channels can be assigned names for easy recognition and easy access. The 2100H supports three different scan modes: Full Scan, Memory Scan, Programmed Scan and five scan resume conditions.

Other features include: 113 memories, alphanumeric notes, 3-way priority watch and independently programmable Rx/Tx and tone squelch. There is an external speaker jack on the rear panel. The IC-2100H is built to rugged MIL SPEC 810C/D/E Shock-Vib standards and has a convenient front mounted mic jack. This radio includes the sophisticated, backlit HM-133S DTMF hand mic.

General characteristics

HAM bands
2m
Frequency stability
±10 ppm (-10°C to +60°C)
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories
113 channels in 1 bank(s)

Receiver

RX-range
136-174 MHz
Modulations
FM
Sensitivity
Less than 0.18 µV for 12 dB SINAD
Selectivity
More than 12 kHz at -6 dB
Less than 28 kHz at -60 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 15.65 MHz
2nd: 450 kHz
Image rejection
> 60 dB
Audio output
2.4 W at 10% distortion with an 8 load

Transmitter

TX-range
144-146 MHz (Europe)
144-148 MHz (USA)
Modulations
FM
RF-output
High: 55 W, Low: 5 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
0.8-1 A
TX
12 A max

Physical

Dimensions (w×h×d)
140 × 40 × 180 mm (5.51 × 1.57 × 7.09 in) (projections not included)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 199x and 199x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2982
MPN
ICOM-IC-002100H

Manuals, diagrams and brochures

ICOM IC-2100H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2100H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-2100H is around:

  • USD 8.00 ~ USD 64.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 72.00 Used / Good eBay
2010 USD 225.00 Used / Mint Cliff Fox
2008 USD 100.00 Used / Good KenH
2007 USD 95.00 Used / Good KenH
2002 USD 150.00 New / Mint n0nab
