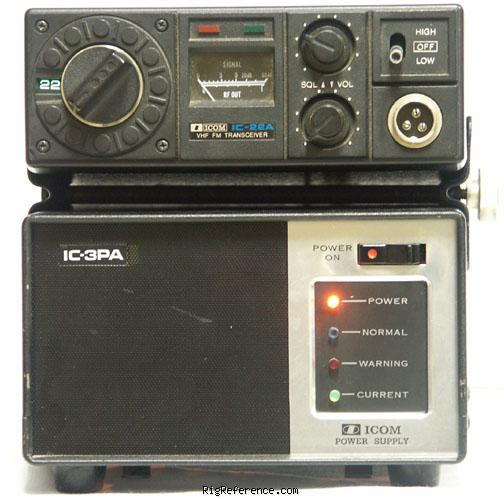

The ICOM IC-22A is a crystal programmed 2 meter transceiver. Channels spacing is fixed at 15 kHz.

The IC-22A was followed by the ICOM IC-22S.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
15 kHz
Memories
22 channels in 1 bank(s)

Receiver

RX-range
144-146 MHz
Modulations
FM
Sensitivity
?
Selectivity
±15 kHz (-6 dB)
±25 kHz (-50 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
?
Audio output
1 W into 8 ohms

Transmitter

TX-range
144-146 MHz
Modulations
FM
RF-output
1 / 10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.5V DC ±20%, neg. ground
Current drain RX
150 mA
TX
2 A max

Physical

Dimensions (w×h×d)
156 × 58 × 205 mm (6.14 × 2.28 × 8.07 in)
Weight
1.70 kg (3.8 lbs)
Form factor
Mobile
Manufactured
Between 197x and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2998
MPN
ICOM-IC-000022A
