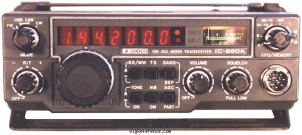

American edition of the ICOM IC-260E.

Frequency range

RX-range
144-148 MHz
TX-range
144-148 MHz
HAM bands
?
Stability
?
Tuning steps
0.1 / 1 / 5 kHz
Filters
?

Receiver

Modulations
FM   CW   SSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM   CW   SSB
RF-Output
High: 10 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 0.8 A
TX
Max 3.1 A

Physical

Dimensions (w×h×d)
185 × 64 × 223 mm (7.28 × 2.52 × 8.78 in)
Weight
2.70 kg (6.0 lbs)
Form factor
Mobile
Manufactured
Between 1979 and 19xx
MPN
ICOM-IC-000260A

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-260A user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-260A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-260A is around:

  • USD 95.00
Year Historic price Condition Submitted by
2015 USD 100.00 Used / Good OldBoss
