ICOM IC-2SAT

Handheld VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-2SAT rigs and spare parts on eBay Find the ICOM IC-2SAT on Amazon
We receive a small fee when you buy through these links, thank you!

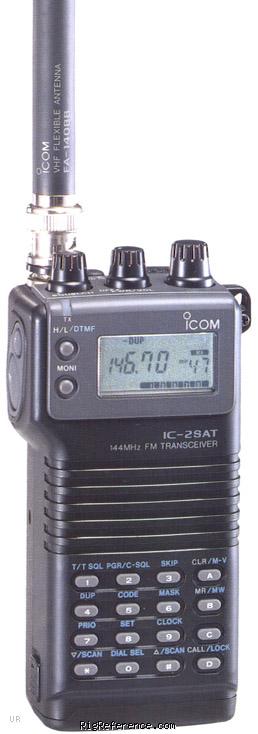

The Icom IC-2SAT is a 2 meter handheld that is very compact, light weight and economical. It features a built-in 7V 300 mA NiCad battery, plus you can snap on optional battery packs for more power or operating time. Four power output levels are selectable: 5, 3.5, 1.5 watts and 0.5 watts (@ 13.8 V DC).

Frequency range

RX-range
140-150 MHz
TX-range
144-148 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 5 W, Low 3: 3.5 W, Low 2: 1.5 W, Low 1: 500 mW

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
13.2V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
49 × 103 × 35 mm (1.93 × 4.06 × 1.38 in)
Weight
280 gr (9.9 oz)
Form factor
Handheld
Manufactured
Between 19xx and 19xx
MPN
ICOM-IC-000002SAT

Other features

Memories
48 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Band & Memory Scan
Pocket Beep
Priority Watch
Auto Repeater
DTMF Keypad
Battery Saver
Clock with timer
External 12 V DC Jack
