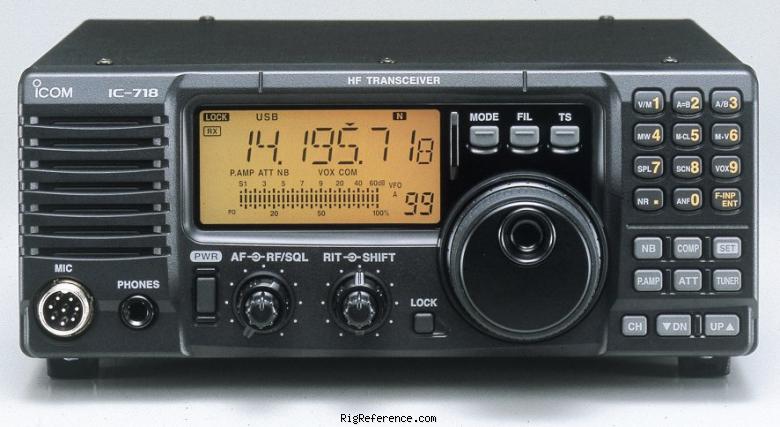

ICOM IC-718 Desktop Shortwave Transceiver

 (5.0/5)  Add a review   View all reviews (2)   Add to my shack



Login or Register to upload images

The ICOM IC-718 covers 160-10 meters. This radio is very easy to operate with one touch band switching, direct frequency input via keypad and auto tuning steps (senses the rate at which the tuning knob is turned). The receiver section features IF Shift, Adjustable Noise Blanker, RIT and formerly optional UT-106 DSP Automatic Notch/Noise Reduction. These big rig features give you the necessary tools to fight interference. You get 99 regular memories and 2 scan edge memories. You can scan memories or scan between two specific frequencies. The transmit section features up to 100 watts of RF output and AF speech compression to increase average audio output. A Morse keyer is built-in. The meter shows output power, ALC and VSWR. The layout and basic operation of this rig is simple, but through a menu system you can adjust many operational parameters such as: peak-hold on the meter, mode lock out, RF/SQL knob behavior, key type, etc. The TS function allows you to vary the tuning increment to your liking. The easy-to-read, large LCD and front firing speaker make this rig ideal for either mobile or base installations. The has rear panel a standard SO-239 antenna jack.

The IC-718 comes with the HM-36 hand mic and OPC-025A DC power cable.

Frequency range

RX-range
0.030-30 MHz
TX-range
10-160 m + WARC
HAM bands
-
Stability
Less than ±200 Hz from 1 minute to 60 minutes after power on. After that rate of stability less than ±30 Hz/hr. at +25°C (+77°F)
Tuning steps
0.001 kHz
Filters
-

Receiver

Modulations
AM   CW   USB   LSB   RTTY
Sensitivity
SSB, CW, RTTY
0.16 µV (1.8-29.999999 MHz)
AM
13 µV (0.5-1.799999 MHz)
2 µV (1.8-29.999999 MHz)
Selectivity
SSB, CW, RTTY
More than 2.1 kHz/-6 dB
Less than 4.5 kHz/-60 dB
AM
More than 6.0 kHz/-6 dB
Less than 20 kHz/-40 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
More than 70 dB (1.8-29.999999 MHz)
Audio output
More than 2.0W at 10% distortion with an 8Ω load

Transmitter

Modulations
AM   CW   USB   LSB   RTTY
RF-Output
AM: 2-40 W, SSB/CW: 2-100 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC ±15% (negative ground)
Current drain RX
2 A max
TX
20 A max

Physical

Dimensions (w×h×d)
240 × 95 × 239 mm (9.45 × 3.74 × 9.41 in)
Weight
3.80 kg (8.4 lbs)
Form factor
Base Station
Manufactured
Between 2000 and 200x
MPN
ICOM-IC-000718

Other features

Memories
101 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
DSP (UT-106) and speech synthesizer (UT-102) options
Accessories
-

Manuals, diagrams and brochures

ICOM IC-718 Instruction Manual.pdf submitted by RigReference
ICOM IC-718 service manual submitted by RigReference

Upload relevant documents

Show other documents.

Reviews & stories

A solid, basic rig, with features that get you on the air.

ICOM IC-718, Desktop Shortwave Transceiver

As the first review posted on the IC-718, let me say that a review based on a comparison with more expensive radios is a poor review. One must evaluate the radio on it's OWN merits for what it is designed for and not what it doesn't have or doesn't do compared to higher end rigs. Obviously, more expensive radios with far more features can DO more and you get what you pay for. But, that is not a fair review.

I have owned two IC-718's over the years and enjoyed both of them. The first one was bought new from HRO and was given a workout over three years operating CW, SSB and PSK31. This is my first recommendation to a new ham breaking into HF or for someone on a limited budget looking for a solid rig to use.

In particular, I was impressed with the receiver sensitivity which was comparable to many of the far more expensive radios and I found it very stable which suited it well for digital operating.

The radio is laid out very well and is easily operated by new and experienced operators. It is especially well used for portable and emergency work as it is compact and rugged.

This would be my choice as recommended for a new ham getting into HF operating. It does everything it is designed to do and will satisfy most needs. If I were to mention any negatives, it would be the volume control that gives off a 'pop' when turned up from the fully counterclockwise position as a minor design deficiency. What I did find really enhanced operating was to find a good volume setting and vary the RF gain downward which reduced the background noise considerably with very little reduction in signal level. A little practice doing that really make this a nice radio to use.

Written by K7IN on Nov 21, 2009

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2004
USD 629.00

Little Beauty

ICOM IC-718, Desktop Shortwave Transceiver

I first purchased this rig in 2000 for my Father, he used it day after day working the world on a dipole. Good reception especially with the DSP board added.After his passing i used the 718 as my main transceiver this time hooked up to a OCF dipole working the world on SSB.

100 watts is plenty, team it up with a desk mike like a SM6 and a good power supply capable of 20amps continuous and you are in business.

The best part is that it is simple you can get on pick up DX and go to the next signal while others are mucking around with adjusting knobs.

This is a great rig and this is why you can still pick one up brand new 16 years after it was introduced on the market.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2000
AUD 960.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-718. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-718 might be around:

  • GBP 0.00
  • USD 429.00
  • EUR 405.00
Price Condition Year User
EUR 659.00 New / Mint 2003 dg1un
USD 629.00 Used / Good 2004 K7IN
USD 250.00 Used / Good 2008 silkt
USD 425.00 Used / Okay 2009 KenH
USD 499.00 Used / Good 2010 N3PDT
EUR 595.00 New / Good 2010 thiecom.de
USD 415.00 Used / Good 2010 AC8HV
USD 549.00 New / Mint 2011 Buzzard
EUR 595.00 New / Mint 2013 thiecom.de
USD 639.00 New / Mint 2014 OldBoss
